Central Air Conditioner Parts: All About the Condenser

Author:

Dan has been in the HVAC industry for 23 years with experience ranging from installation and service to sales and distribution.

The Condenser is the Main Working Component in an A/C System

Though many refer to this as their air conditioner, truly it is only part of a split system. The condenser it the proper name of this unit because it condenses the refrigerant back into a liquid from a gas.

Though many refer to this as their air conditioner, truly it is only part of a split system. The condenser it the proper name of this unit because it condenses the refrigerant back into a liquid from a gas.

An air conditioning system is rather simple really in the number of parts it's made up of. In reality, the system is made up of two main components, the condenser, and the coil. There are other things that are a necessary to connect and help the system function but they aren't dedicated solely to the A/C system. For example, the thermostat and the furnace, or air handler, are not solely belonging to the air conditioning system.

With that said, the condenser is the only real mechanical part of the system. The evaporator coil is really just a box of fins and tubing with a drain attached to carry off the condensation it collects.

The Components of the Condenser Unit

  • Compressor
  • Condenser Fan and Fan Motor
  • Condenser Coils
  • Capacitor
  • Contactor

What I aim to do is explain only the parts of the condensing unit. This is the piece where the problems will likely occur and the more you know about what it's made up of, the less likely you are to be "taken" by a shady service technician. It's unfortunate but, they are out there.

The Compressor

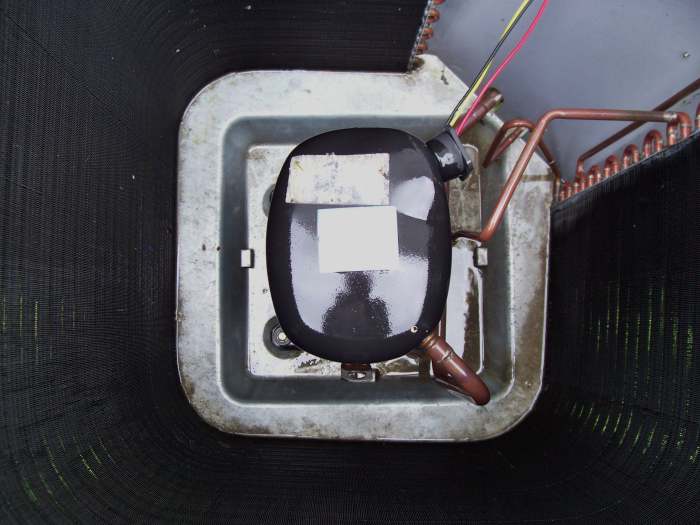

This is a top view of the compressor located in the center of the condensing unit. Other than cleaning your unit, you shouldn't really be in here but do note if you are, this may be very hot. Especially some of the copper lines attached to it.

This is a top view of the compressor located in the center of the condensing unit. Other than cleaning your unit, you shouldn't really be in here but do note if you are, this may be very hot. Especially some of the copper lines attached to it.

The compressor is the head honcho in the air conditioning system. If it breaks down, forget fixing it yourself and carefully weigh the expense of replacing it verses getting a whole new system. Especially if you have an out of date, now obsolete R-22 system.

Today's compressors are what is called "hermetic", meaning sealed. There is no opening them up and putting them back together. They are also nearly all of the scroll type. This means that instead of a piston pushing up and down on the refrigerant, it is a rotating component that is doing the work. This is beneficial since the impact of a piston is not good for itself. Plus, the scroll type will be much quieter during operation.

The Condenser Fan and Fan Motor

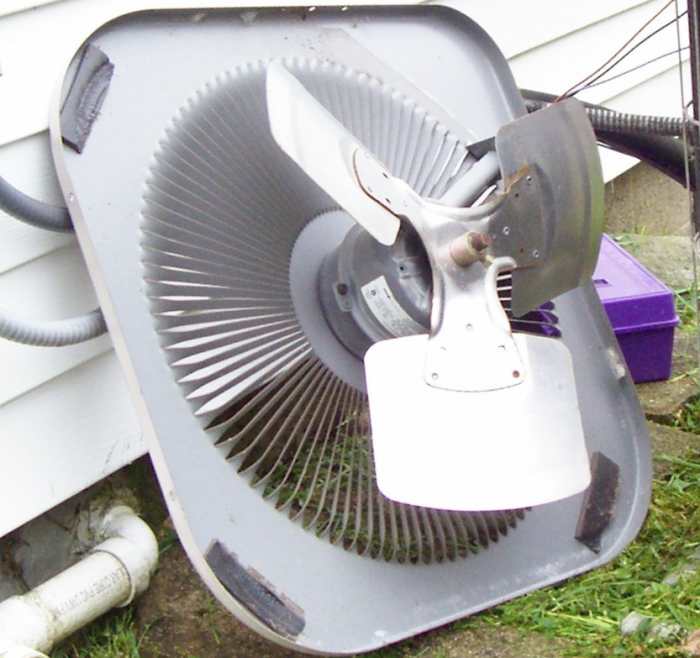

Here the condenser lid is removed so that you can see the fan and motor. Notice the solid housing on the motor. Be sure your fan spins freely with your hand and if not, lubricate the shaft so that it does.

Here the condenser lid is removed so that you can see the fan and motor. Notice the solid housing on the motor. Be sure your fan spins freely with your hand and if not, lubricate the shaft so that it does.

The condenser fan and motor are an essential part of the air conditioning system as well. This fan is used to pull air through the coils of the condenser to help cool the refrigerant and compressor as well as displace the heat that is coming off of those parts.

This is why the fan is blowing warm air out of the unit. This is also why cut grass, leaves and "fuzzies" are pulled into the fins on the coils which must be kept clean for good airflow. With the air being drawn in by the fan comes all sorts of things that block air and keep our condenser from working as efficiently as it should. I wrote an article all about how to clean your coils to help you out with this.

These motors are sealed so that rain cannot get into the working parts of the motor. Be sure that if you have the motor replaced that the housing of the motor is solid and does not have "breather" ports on it. Some do not realize this difference and assume a blower motor can be used to replace a condenser motor. This mistake will surely cause problems if made.

NOTE: The condenser fan motor and compressor are the 2 parts that you want to be sure have a decent warranty when making an A/C system purchase. Most other parts will have only a year long warranty but are rather inexpensive to replace if needed later. Not so much for the fan motor and compressor.

The Condenser Coils

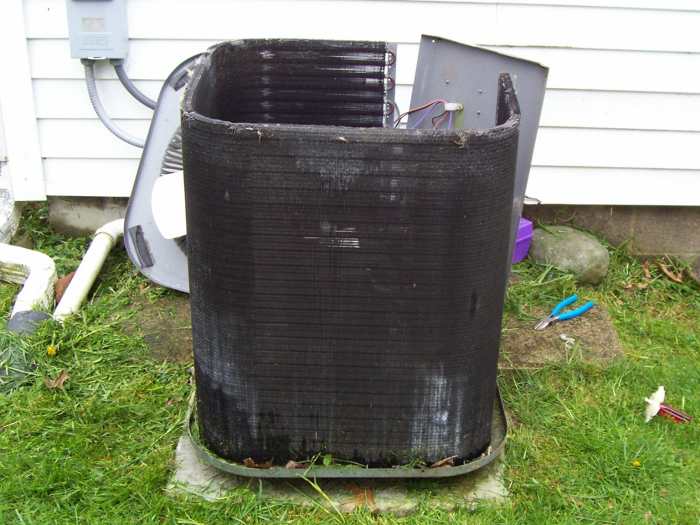

When the condenser is stripped down, it's really just a bunch of coils and fins that are typically referred to as the condenser coils.

When the condenser is stripped down, it's really just a bunch of coils and fins that are typically referred to as the condenser coils.

The condenser coil is where the process of the refrigerant returning from a gas to a liquid begins. There is no mechanical function here. The coils either contain refrigerant or they don't. Of course, if they don't, you have a problem on your hands.

Air conditioning is all about the relationship between temperature and pressure. These two things together are manipulated so that the refrigerant in the system will change back and forth from liquid to gas. This is a very nutshell explanation of how air conditioning works but that is another conversation altogether.

The coil area of a condenser has a significant impact on how efficiently our air conditioner is. You may have noticed that lately, the air conditioners that people are having installed are much larger than those they replaced.

This is largely related to the fact that energy regulations have commanded that the minimum SEER rating (efficiency rating) be increased over the last few years. Increasing the amount of coil space helps to increase the efficiency of converting our refrigerant from gas to liquid thus increasing SEER rating and why size has grown.

The Capacitor

The capacitor is guilty of costing many homeowners a significant amount of money when it blows. It's also responsible for providing significant income to service providers. Buy one and keep it on hand.

The capacitor is guilty of costing many homeowners a significant amount of money when it blows. It's also responsible for providing significant income to service providers. Buy one and keep it on hand.

The capacitor's function is rather simple, to provide a boost of electricity to help start or run motors. It sort of works like a battery in the respect that it stores power. When the air conditioner is asked to operate, the capacitor discharges this stored energy, providing a boost to get the motor going.

These capacitors do blow and when they do, it's really quite simple to diagnose and replace. I wrote a guide to help you diagnose and replace your A/C capacitor, which should give you a solid understanding of how to do this. You may see an oily discharge, in some cases, dripping down the side of the capacitor or perhaps yours won't entirely "pop" and instead, just the top will be humped up. This top should be flat. Of course, the first thing you'll notice is that your A/C isn't working and that the fan is not spinning.

The Contactor

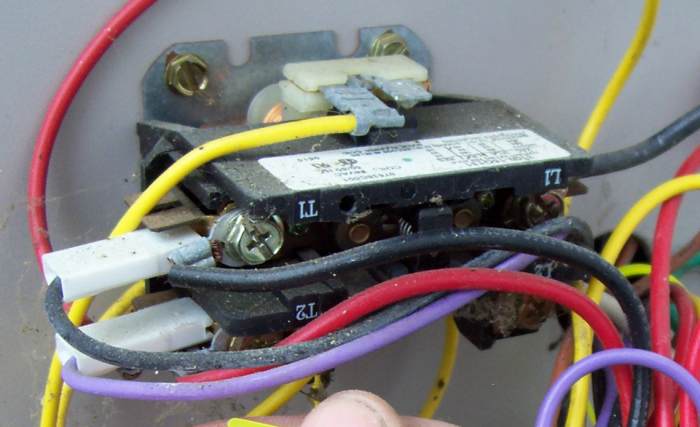

Contactors don't typically go bad. Many times they malfunction, it is because of carbon build up on the surface that is to make contact.

Contactors don't typically go bad. Many times they malfunction, it is because of carbon build up on the surface that is to make contact.

The contactor is a sort of power bridge. In the photo, you can see a button in the center of the component. This button serves as a drawbridge. When the thermostat tells the furnace that it wants cooling, the furnace then relays this message to the contactor via a 24V signal. When the 24V hits the contactor, it creates a magnetism that pulls in this button, thus closing the bridge and allowing power to cross through to the condenser fan and compressor.

Here is where you may sometimes see that your A/C fuses are blown. You may hear the unit humming and see that the contactor button is pulled in but nothing is happening. This is likely because the fuses protecting the unit are blown and though the button is pulled in, there is no power waiting to "cross the bridge".

NOTE: There is 220V passing across this drawbridge. It's certainly not the type of bridge you care to play around with if you prefer to keep control of your own functions.

Things That Make You Say, "Really?"

For each question, choose the best answer. The answer key is below.

  1. What is created when flame is introduced to the chemicals in refrigerant?
    • Carbon Monoxide
    • Hydrochloric Acid
    • Mustard Gas
    • Pepsi

Answer Key

  1. Mustard Gas

Air conditioning systems are rather simple. It's the science that is difficult to understand.

That's it really. Some more modern, advanced air conditioning condensers do have an electronic control board but typically, what I've shown you is all you have in your condensing unit.

Now as I mentioned, the condenser is the main unit but it cannot operate without help from it's friends. There must be an indoor fan to move the air, a thermostat to tell the unit when to turn off and on, and an evaporator coil to help manipulate the refrigerant and absorb the heat from within your home.

I hope you feel that you know a bit more about your A/C system and what it is made up of. Just remember, when it comes to your A/C, always take care when maintaining the system. Turn off the power, be careful not to bend any of the fins or copper tubing and never open the refrigerant valves or tubing to the atmosphere. Not only is this harmful to the environment but it can cause severe burns and is against the law with very heavy repercussions. Stay safe!

~ We're all in this together ~

Helpful or Hopeless?

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.

Questions & Answers

Question: What is the control piece on an A/C?

Answer: I'm not exactly sure what you mean however the thermostat controls the A/C. The contactor is what acts as the on/off switch so to speak. Beyond that, there isn't really a control unless perhaps you have some sort of modulating or communicating the type of unit.

Question: My AC works great most of the time, except when the outside temperature is 105+ degrees. Then once or twice a day, it starts blowing warm air (85 degrees at the closest register). I turn the system off for 10 minutes and usually the cold air comes back by the first try. The AC guys keep telling me my unit is working just fine. What should they look for?

Answer: The good news is it’s working, but the bad news is it may be tripping a limit due to extreme operating conditions. When you shut it down, giving it a chance to cool, the limit is probably resetting and allowing it to work again until it begins to run too hot and tripping the limit again. The AC guys may very well be right that the unit is working correctly though I’m sure that answer won't make you happy. Don’t be tempted to spray the unit with a hose to cool it. You could cause serious damage.

Question: What role does the indoor thermostat play in regards to my AC unit? Also, how do I know if this may need to be replaced?

Answer: The thermostat is the command center of your HVAC system. You would have to eliminate it from the circuit and run some electrical tests to be sure.

Question: Is there such a part as a conductor in an a/c unit?

Answer: Perhaps someone is referring to the contactor. While that’s not the common term I can see why someone may call it that.

Question: where can I get a condenser fan motor to replace an old one?

Answer: You'll need to find a contractor supply house near you. A place like Ferguson (which is a national chain and why I mention them as an example) or maybe Grainger. (Again, national) there are likely more but I don't know where you are so I don't know who else to tell you since the places near me are typically within my state only.

Question: My dog chewed the thermostat wire the contractor. I reconnected the red & white thermostat wire back, but can’t turn on the unit with the thermostat. I can press the contractor button & condenser fan, and the compressor turns on and cools. What failed?

Answer: I would imagine it’s still the wire and you may have to do more than just reconnect it. Perhaps replace a whole section. Assuming the unit worked before this. It may have shorted the fuse on the board?
