How to Figure Out What is Wrong With Your Furnace

How a Furnace Works; How It Turns Itself On and Off

Often the best way to figure out what is wrong with something is to know how it is supposed to work. If you know the sequence of operations, you can pinpoint where the sequence is being disrupted. Your furnace is no exception to the rule.

When your furnace is called into action by the thermostat, there is a rhyme and reason to the procedure it follows in safely turning itself on. Next time your furnace doesn't respond to the call, you will be able to see where the problem lies, and you can either decide that it is within your skills and resources to repair it, or that you need a professional HVAC technician to handle the issue for you.

The following discussion can save you time and money, whether you fix the problem yourself, or end up showing the problem to your service technician.

NOTE: Furnaces burn natural gas, and use electricity, normally 120 volts; both of these present hazards. As always, be sure the power is shut off to your unit before you do any work on it. Also, never assume anything. If what you see in your home differs from what I describe here, do not guess. You could make the problem worse and ultimately more costly to repair.

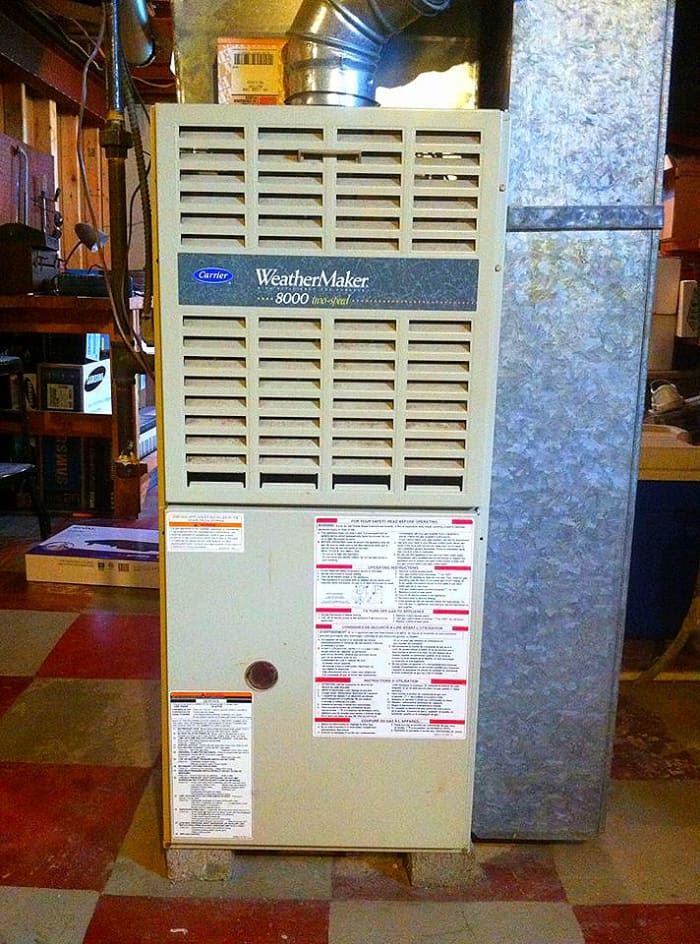

A fairly standard 80% efficient furnace, easily identified by its metal chimney. Higher efficiency furnaces usually have PVC (plastic) chimneys.
A fairly standard 80% efficient furnace, easily identified by its metal chimney. Higher efficiency furnaces usually have PVC (plastic) chimneys.

Firing Order: Steps in the Operation of a Modern Forced-Air Furnace

When the thermostat asks for heat, the furnace jumps into action, going through the steps and components below. You can see many of these components in the video.

  1. The thermostat tells the furnace to come on.
  2. The inducer motor starts up.
  3. The pressure switch confirms proper venting of the chimney.
  4. The hot-surface ignition module (if you have one, and not a spark ignitor or a pilot) begins to glow.
  5. The gas valve opens and the gas is ignited by the ignition source.
  6. The flame sensor verifies that the gas has been lit.
  7. The high-limit switch reaches its set temperature.
  8. The blower motor comes on.
  9. The furnace runs until the thermostat is satisfied and tells it to shut down.
  10. The gas valve shuts.
  11. The high-limit switch reaches its low temperature setting.
  12. The fan shuts down.

A newer furnace may have even more bells and whistles; an old furnace may have just the minimum, a gas valve and a thermocouple (like an old-fashioned flame sensor). The thermocouple or flame sensor tests whether the pilot is lit, and stops the main gas valve from opening if it is not. Of course a broken thermocouple can also stop the gas valve from opening.

The Thermostat

The thermostat is where it all begins. The thermostat is really just a set of switches that open and close depending on the temperature, allowing power to flow to certain circuits in the heating and cooling system. Think of them like drawbridges that swing up and down. They are normally drawn up, but can be lowered to close the bridge and allow power to pass. When the temperature in your home drops, the thermostat drops its bridge, sending power to the furnace to let it know that heat is needed. As the room temperature rises again, the thermostat raises its bridge and shuts off the power. For air conditioning, the thermostat works the same way but in a mirror image, closing its bridge when the house gets too warm.

If the temperature in the house is lower than the temperature to which you set your thermostat, your thermostat may not be functioning as it should. You can test this by jumping (touching together) the red and white wires to your thermostat. If the furnace comes on, your thermostat is quite likely the problem.

What Do the Wires in the Thermostat Do?

Wire Color
What it Controls
Red is for power. This carries 24-volt power, supplied by the furnace. This power waits at the “bridge” until it is told where to go.
White is for heat. When the bridge (switch) between the red and white wires closes, the thermostat is calling for heat.
Yellow is for cooling. When the bridge (switch) between the red and yellow wires closes, the thermostat is calling for cooling.
Green is for the fan. When the bridge between red and green closes, only the fan runs. No heat or cooling is called for.
Blue is a rogue or wild card. It can be used to power a display or for advanced features. Usually, though, it is wrapped back into the wall and not used at all.
Other colors of wires in a home system may be for advanced functions or future use.

The Inducer Motor and Fan

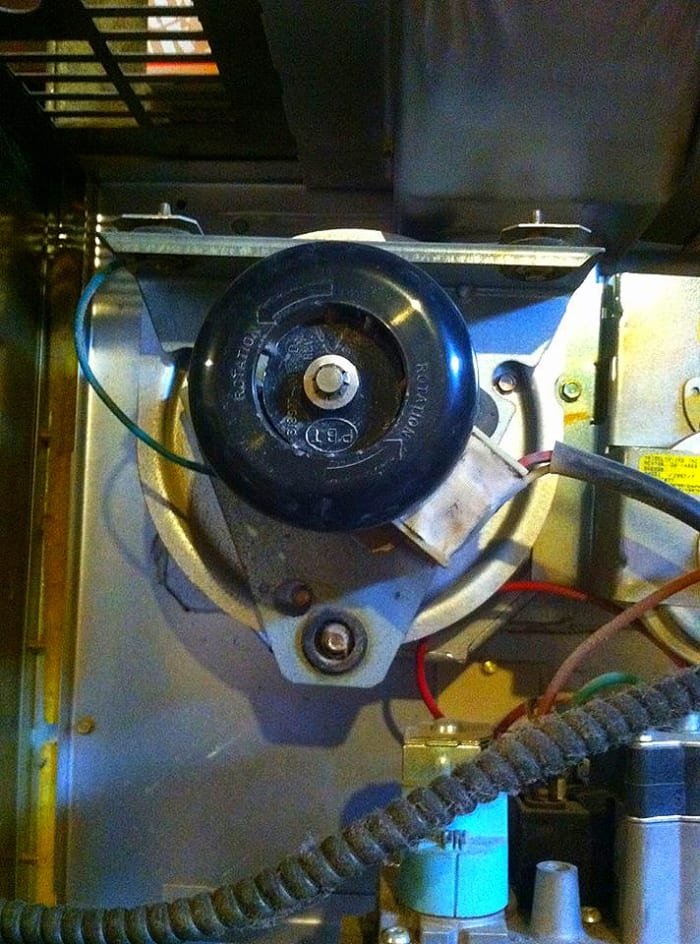

The inducer motor and fan. The fan draws the "bad" exhaust gases out of the heat exchanger and pushes them up into the chimney.
The inducer motor and fan. The fan draws the "bad" exhaust gases out of the heat exchanger and pushes them up into the chimney.

The inducer motor and fan push exhaust up the chimney, getting rid of carbon monoxide (CO). Older systems relied solely on "natural draft" to vent these gases, but inducers have been a great addition to the furnace system. They extend the life of chimneys, and when used with pressure switches they help prevent CO poisoning.

The Pressure Switches

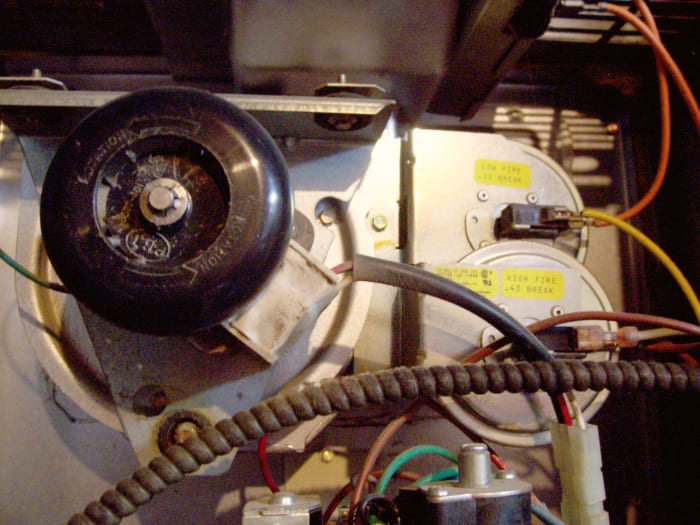

This unit has two pressure switches because it is a two-stage furnace. Inside the casing is a diaphragm, that when pressurized, completes the connection to the next component.
This unit has two pressure switches because it is a two-stage furnace. Inside the casing is a diaphragm, that when pressurized, completes the connection to the next component.

The function of the pressure switch is to verify that the inducer motor is actually pushing air up the chimney. If the chimney is blocked, for example by a bird's nest, the pressure switch shuts down the system in order to eliminate the risk of CO entering the home. Of course the pressure switch may also shut down if the motor is old and running too slow to satisfy the switch, or the hose from the fan to the switch is pinched or broken, or the switch itself is bad.

Again, a rather simple device in a complex system. The hot surface ignitor uses electrical power to heat a very fragile ceramic element, charcoal-like in appearance, to such a high temperature that natural gas or propane bursts into flame as it flows by. The hot surface ignitor is located at the orifice at the first burner port, in order to light the gas immediately as it's introduced to the port. This prevents a buildup of unburned gas in the unit.

Some furnaces employ what is called spark ignition. Instead of a red-hot surface, a spark ignitor creates a series of sparks to ignite the gas.

It's not important whether you have hot-surface or electronic ignition in your furnace; the important thing is that you are avoiding using a pilot light. Pilot lights waste gas; they burn gas constantly during the heating season, and some people let them burn year round. Want to save a few dollars? Make sure you shut off the pilot on your furnace when it's not being used for the season. Just be sure you know how to relight it next year before you do.

The hot surface ignitor is very fragile, and when working, very hot.
The hot surface ignitor is very fragile, and when working, very hot.

What type of ignition source do you have?

  • Hot Surface
  • Electronic
  • Standing Pilot
See results without voting

The Gas Valve

The gas valve is basically an electronically controlled gateway. When the unit calls for heat, and the circuit board confirms that the right conditions have been met, the unit passes energy to the valve, causing it to open and release gas to be ignited by the ignitor or pilot. When the heat cycle has run its course, the energy to the valve is cut, and the valve once again shuts, cutting off the gas supply to the burners.

The Flame Sensor

The flame sensor is very simple, yet causes a lot of problems for homeowners. Its only job is to verify that the gas has been lit, by sensing the heat. If there's no heat, it shuts off the gas, to avoid any dangerous buildup of gas in the unit. The flame sensor is simple to fix when it goes bad or just needs some TLC.

Video: Cleaning a Flame Sensor

The High-Limit Switch

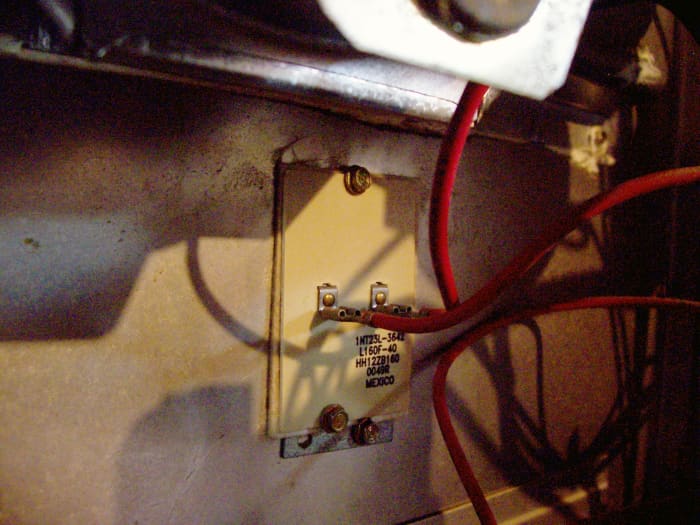

This high-limit switch is not adjustable. Older switches had a dial that could be adjusted, which in reality was not a good idea.
This high-limit switch is not adjustable. Older switches had a dial that could be adjusted, which in reality was not a good idea.

The high-limit switch serves several purposes.

First, it keeps the furnace fan from turning on until it detects that a set temperature has been reached. Otherwise, the fan would come on prematurely, and blow cold air into the house each time the thermostat asks for heat.

Second, it also tells the blower how long it should continue to run before shutting off, once the thermostat has been satisfied. Otherwise, hot air remaining in the duct work and heat exchanger, after the furnace has cut off, would just go to waste.

Lastly, the limit switch will turn the unit off if the heat exchanger reaches a certain high temperature, to prevent dangerous overheating.

The Furnace Fan and Blower Motor

Here's a good exposed shot of what your blower assembly looks like outside of the unit.
Here's a good exposed shot of what your blower assembly looks like outside of the unit.

Ah, finally. Heat for us all. Now that all the sensors have been satisfied, and the limit switch tells the blower that the air is warm enough to send into the living space, it will start the air flowing.

Our furnace's blower will typically use 120 volts and push anywhere from 800 to 2000 cubic feet per minute (cfm). Most blowers require the use of a capacitor, and have a half-inch drive that hooks directly to the fan, unless you have a belt-driven motor.

Tid-Bit: In the case of a malfunction, or a cut in power to the unit, it is common for the blower to turn on and run for a period of time. This may be because there is too much heat, and a cool down is called for, or there may be a build up of "bad gases" which need to be spead out or dispersed by the fan.

The Roll-Out Switch

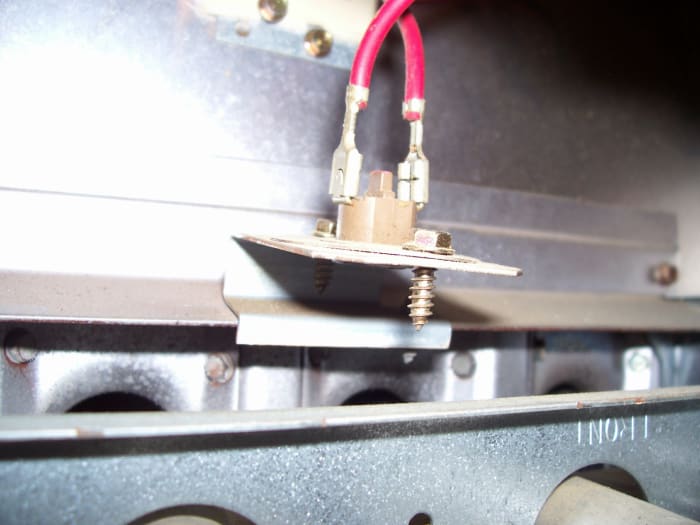

One other little safety gadget is the roll-out switch. This little guy can sense if flames "roll out" of their proper domain, and shut down the system as well.
One other little safety gadget is the roll-out switch. This little guy can sense if flames "roll out" of their proper domain, and shut down the system as well.

Save Time and Money By Knowing Your Furnace

I hope this helped you to understand your heating system a bit better. Here are some troubleshooting ideas involving the parts you just read about, and here are a few more parts tips.

  • In case of a malfunction, your furnace will usually try to restart three times. If on the third try it cannot reach successful ignition, it will go into a lockout mode for a specified amount of time, usually an hour. Resetting the power (turning it off and on) will usually reset the board and allow the unit to show you what was happening in case you missed it.
  • The little blinking light in the unit isn't a Christmas decoration or little disco in your furnace. This light blinks a sort of Morse Code that can lead you to the problem, or say "Hey, all is well here." Look inside and outside your unit. There is likely a code chart to tell you what the dot, dot, dash, dash sequence you're seeing means.
  • Some annoying noises your home furnace makes may be simple and cheap to quiet down.
  • Take care of your furnace and it will likely take care of you. But if you don't clean the unit and change the filter like you're supposed to, your furnace may break down, or break your bank.
