How to Replace the Fan Limit Switch in a Furnace

Updated on February 28, 2019
Cre8tor profile image

Dan has been in the HVAC industry for 23 years with experience ranging from installation and service to sales and distribution.

Is Your Furnace Overheating?

This is a standard forced air, 80% efficient furnace with a few bells and whistles inside.
This is a standard forced air, 80% efficient furnace with a few bells and whistles inside. | Source

Furnace Not Working?

Does the fan on your furnace keep running but you're not getting any heat? You may have a problem with your limit switch.

There are many common furnace problems that can make the fan keep running. This is because when the furnace defaults, the fan can be used to help reduce risks caused by the problem. In this case, it would help to cool down the furnace if it has overheated. The problem with that here is that if the limit switch is bad, it is sending a false message to the furnace and causing it to believe it is overheating when really it's not.

Often times when a furnace malfunctions, it will run the fan for a minute and then try to restart itself in case it was just a one time glitch in the system. It will try to start usually 3 times before going into a "lockout". After 3 times, the furnace figures there's a problem and it shouldn't try to run again. The "lockout" will last a while then it will try, and try, and try again before locking back out.

The following will tell you what a limit switch is for and how to replace it. This information will also offer some photos of a couple common style limit switches and tips on finding the right replacement.

Fan Limit Switch Examples

Modern Limit Switch Photo
Modern Limit Switch Photo | Source

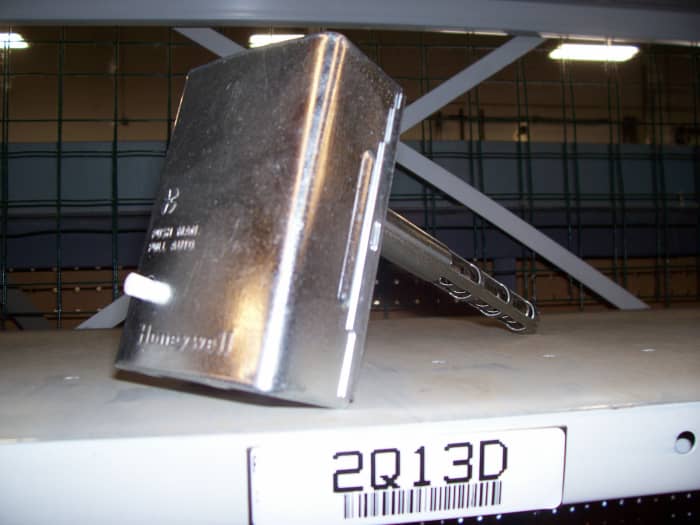

Older Style Limit Switch Photo. Notice the rod in the back. This will vary per unit. Be sure to measure this or take it with you to get the right replacement.
Older Style Limit Switch Photo. Notice the rod in the back. This will vary per unit. Be sure to measure this or take it with you to get the right replacement. | Source
Here is the older style with the cover off. These numbers are temperature and the 3 little slides in the dial are used to set the 3 different temperatures it will function at.
Here is the older style with the cover off. These numbers are temperature and the 3 little slides in the dial are used to set the 3 different temperatures it will function at. | Source

What Does the Limit Switch in a Furnace Do?

A furnace's limit switch or fan/limit switch has 3 main functions.

  1. Tell the fan when to come on. When the furnace is warm enough upon start up to begin heating the home, (about 20 degrees above room temperature) it will tell the fan to come on. (temperature setting #1) This helps to avoid cold air drafts.
  2. Tell the fan when to shut off. Once the thermostat is satisfied, the gas shuts off but the fan will continue to run until the furnace's temperature is cooled to a certain temperature. (temp. setting #2) This helps to make use of residual heat that is left in the system after the gas shuts off but not too long to again avoid cold drafts.
  3. Tell the furnace to shut down because of overheating. Let's say the flames are burning but the furnace fan breaks down...there would be nothing to push the heat out of the unit and thus creating extremely high and potentially dangerous temperatures in the furnace. At the "high limit" setting (temp. setting #3) the switch would "trip" and cut power to the gas valve thus eliminating the danger of fire or explosion.

These three functions are based on 3 different temperature settings. Today, these are factory set and unchangeable without changing the limit switch which is a bad idea. This is because the temperatures are based on the furnace's capabilities and ratings. Playing with these temperatures can cause your furnace to run less efficiently, possibly again damage the limit switch, or worse, let your furnace get much hotter than it was designed to be. You can see how this would be bad, right? Older models had a much different style of limit switch which had adjustable temperature settings but they are not used in modern style furnaces.

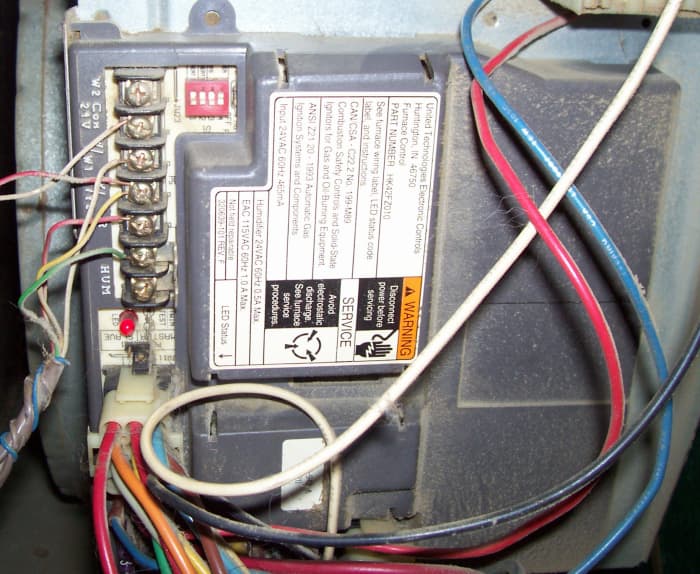

Furnace Circuit Board

On this circuit board, you can see the red LED at the bottom left that will blink me a code to point me in the right direction.
On this circuit board, you can see the red LED at the bottom left that will blink me a code to point me in the right direction. | Source

Your Furnace Might Be Telling You What's Wrong

Furnaces these days are very intelligent. Most modern furnaces have a "spyglass" that you can look through and see a blinking light. This blinking light is saying, "Hey, this is probably what's wrong with me" by blinking you a sort of Morse Code. Dash, dot, dot may mean the number 12 and if you locate the code chart on your unit it might say, "Limit switch is open" or "Ignition failure". Now it doesn't tell you what happened but it does point you in the direction of the problem. This is quite handy when troubleshooting your furnace.

I wrote a simple to use guide about how to interpret what your blinking light is telling you here.

Did You Know....

...what that little light was for inside your furnace?

See results

How to Find a Limit Switch Replacement

As always, when looking for parts for anything really, it's important to have as much information as you can about the furnace. Model number, serial number, voltage/amperage ratings, etc... Most all of this information will be located on the rating plate of the unit or part. You may not need it all but if you do, you have it and won't be making a second trip to the hardware store.

You're also more likely to get respectable attention from your local supplier who may very well be used to dealing with contractors. Often, wholesale suppliers get frustrated with homeowners because they don't realize what information is needed and then get upset with the wholesaler for asking so many questions. This isn't like buying pencils. The proper information is needed to protect you and your HVAC equipment.

With limit switches, the temperature range will be an important piece of information as well as with the older ones, the length of the rod that protrudes from the back. The best thing to do with this part is to bring the old one with you to the dealer. I say dealer because you won't likely find these in your big box home improvement stores. Now if you're shopping online, be sure you read all the specifications carefully and compare them to yours. Don't guess and don't vary or you will be wasting your money, time and probably, more money since you will be buying another part or worse, damage other parts in your furnace by using the wrong limit switch.

Sperry Instruments VD6504 Non-Contact Voltage Detector, 50-1000 V AC, Black, 5 Sensors
Sperry Instruments VD6504 Non-Contact Voltage Detector, 50-1000 V AC, Black, 5 Sensors

The most important part of this job is your safety. You need to be certain the power to the furnance is shut off while you're working on it. Always double check that that power is off by using a non-contact voltage detector. I use this simple (but reliable) Sperry Instruments one. It's inexpenseive and always works.

It has saved my rear-end more than once. The button below will take you to the Amazon listing for this simple little life-saver.


How to Replace a Limit Switch

Once you've found the correct replacement, replacing the limit switch is quite easy really.

  • Step 1: First, be sure you've shut off the power to the furnace either with the furnace service switch or at the breaker. These are the best ways to ensure the power to the unit is off.
  • Step 2: Now that the power is off, you simply remove the old limit switch and wire the new one back on the exact same way.
  • Step 3: Celebrate! You probably just saved yourself a couple of hundred dollars by doing it yourself!

With the new switches, this is even easier because there are likely only 2 wires coming off of the switch and 2 screws holding it in place. These 2 wires will also likely be held on by spade terminals which are very easy to work with.

The older limit switches are a bit trickier because there will probably be more than 2 screws holding it in, 3 wires to reconnect and there may also be a tab on the switch that you will have to read your installation instructions to determine whether it is to be snapped off or not. Be sure to look at your old one to see if it was an option on it as well and you could copy what you see. Even at that, be sure to read your instructions for your new part and be sure that the settings on the dial are the same as the old.

NOTE: The older switches are a bit more complex so be sure you're comfortable in what you're doing. This may be one that you'll want to turn over to a professional if you're not sure about what it is you're doing.

Once the part is back in place, turn your power back on and set the thermostat so that it calls for heat so you can see that your furnace is working again.

Happy Homeowning

I hope this article has helped or will help you when the time is needed and that you will have that furnace back up and running in no time. Remember, don't guess or assume anything when it comes to your furnace. When in doubt, call a professional to take a look at it and know that you'll feel better knowing about the services you're being given.

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.

Questions & Answers

  • The part says L350 36tx16 manual limit switch. What does manual mean? Did I order the wrong part?

    It looks like it's a rollout switch and there is a little button on top that you can push to reset it if it trips.

  • Where can I find a 'fan' switch for a 50-year-old Coleman furnace?

    You will have to go to a distributor in your area and likely purchase a Honeywell. You need the measurement of the rod coming off the back.

  • Does the temperature have to be the same on the new switch?

    The correct answer is yes. Do guys use a switch that might be 10 degrees one way or the other sometimes, yes, in a pinch to get the heat on. But I don't recommend leaving it there. Replace it with the correct one soon. They aren't that expensive to risk using the wrong one for more than temporary heat.

  • If the limit switch is bad and I have another switch from another furnace that looks the same, can I use it?

    Just because they look the same, no. The switch must be rated the same and have the same length as well if it's the rod type.

  • Will any fan limit switch work on a furnace?

    No. It’s temperature range is based on your furnace requirements which should be marked on the part itself. Some are also shaped/mounted differently.
