How to Make a Naked Portafilter for Your Espresso Machine

Author:

Typical Two-Spout Portafilter

naked_portafilter

What Is a Portafilter?

The naked portafilter is a fairly new innovation in the old process of making espresso. Typically, a portafilter, which holds the coffee grounds and gets clamped to the espresso machine, has one or two spouts that direct the coffee into the espresso cup. By removing these spouts and making it "naked," the coffee maker can clearly see how effective their coffee extraction process is, enabling direct feedback and greater quality control.

Finished: The Naked Portafilter

naked_portafilter

Why the Naked Portafilter Is So Great

The naked, bottomless, or crotchless portafilter is a great innovation that provides the home enthusiast or barista with a fantastic training tool. There are many variables to control when making a shot of espresso. Improper grinding, measuring, or tamping of the coffee can result in a wide variety of bad espresso brewing. The naked portafilter offers a clear window into the coffee extraction process allowing common errors to be seen quickly and easily.

Machining a Naked Portafilter

Below are the steps I used to make my own naked portafilter. I made use of a metal lathe and some basic lathe cutting tools. The pictures below are of two La Pavona portafilters: one chrome, one brass. Please understand that there are a million ways to approach this simple machining project. This is the way I have approached it with the tools I have.

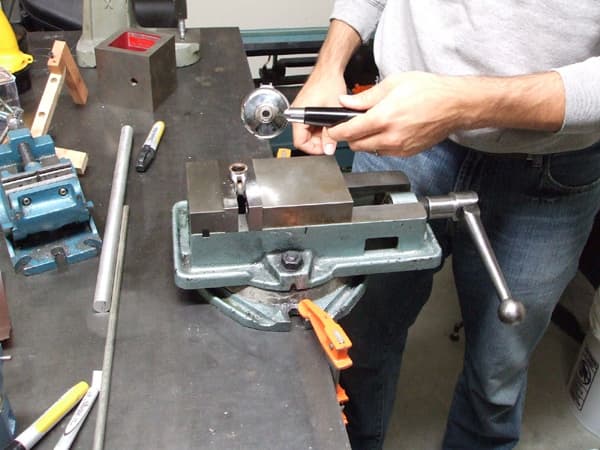

1. Unscrewing the Double Spout

The spout threaded on the portafilter with a thread-locker. Using a vise makes unscrewing the spout much easier.

The spout threaded on the portafilter with a thread-locker. Using a vise makes unscrewing the spout much easier.

2. Removing the Portafilter Handle

Before clamping the portafilter on the lathe, it is important to remove the handle.

Before clamping the portafilter on the lathe, it is important to remove the handle.

3. Clamp Portafilter in Lathe Chuck

Here is the portafilter clamped into the lathe on a 3-jaw chuck.

Here is the portafilter clamped into the lathe on a 3-jaw chuck.

4. Cutting off Spout Threads

Using a lathe cutting tool, I slowly cut off the spout threads, millimeter by millimeter.

Using a lathe cutting tool, I slowly cut off the spout threads, millimeter by millimeter.

5. Spout Threads Removed

The final cut to remove the spout threads.

The final cut to remove the spout threads.

6. Time to Open up the Hole

Once the spout thread is removed, the resulting hole needs to be widened.

Once the spout thread is removed, the resulting hole needs to be widened.

7. Boring Open the Hole

A boring cutting tool allows the hole to be opened up from the inside out.

A boring cutting tool allows the hole to be opened up from the inside out.

8. Boring the Final Hole With the Matching Diameter

I made the final hole about the same diameter as my coffee basket.

I made the final hole about the same diameter as my coffee basket.

9. Adding a Chamfer to the Hole Edge

Chamfering the hole edge removes any sharp metal burrs.

Chamfering the hole edge removes any sharp metal burrs.

10. Machining Is Complete!

naked_portafilter

Naked Portafilter in My Espresso Machine

Here is the Naked Portafilter (with the handle reinstalled) with basket full of coffee, mounted in my espresso machine.

Here is the Naked Portafilter (with the handle reinstalled) with basket full of coffee, mounted in my espresso machine.

Pulling a Shot with the Naked Portafilter

The Naked Portafilter lets you see all the beauty and glory of a nice espresso shot!

The Naked Portafilter lets you see all the beauty and glory of a nice espresso shot!

Perfecting the Naked Extraction by Dan Kehn

  • Great article on using a naked portafilter
    Normal problems that occur during espresso making are: blonding, channeling, over-extraction, under-extraction, and pre-infusion. Get the definitions of these terms and a lot more here. Click on the link to read.
