Have you ever experienced breaking your soldering iron during one of your repairs? Or when you were about to repair something, you just found out that your weapon is broken?
It’s really frustrating, especially when you are making an urgent repair, or you are working in the middle of the night and the stores are closed.
No worries though, because you can make a 5V soldering iron out of your broken one.

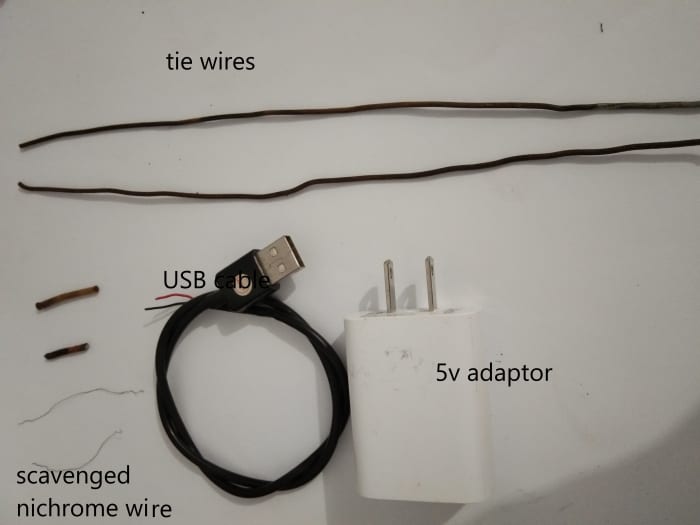

Things You'll Need
- broken soldering iron
- spare tie wire
- solid copper wire (uninsulated)
- USB cord
- 5V adapter
Scavenging the Materials
Screw open your soldering iron and get the heating element tube.
You will notice a wire coiled around through its length for several layers with a heatproof cover in between—they were the nichrome wire. Uncoil them carefully to avoid breakage, as you will use most of it.
Twist all of your scavenged nichrome wires to form a single strand. You will also have a heat-resistant fiberglass sleeve from the broken soldering iron.
When you have all the materials, proceed to the assembly.
How to Put Together the DIY Soldering Iron
1. Measure and cut a 3/4 inch solid copper wire to be your solder tip.
2. Secure a firm body by twisting a couple of turns at the tip of the copper wire with a tie wire.
3. Insert the copper wire into the fiberglass sleeve, leaving a 5 mm of tip uncoated.
Read More From Dengarden
4. Coil a thin wire at both ends of the sleeve as shown in the picture below. Any wire will do, it may be some of the cable wires inside your USB cable or some of the UTP cables. Remove the insulation on the part to be coiled around. Cover the wire’s parts near the sleeve with extra fiberglass sleeve, if you have any, or with some duct tape. This is to prevent the insulated part from burning.
5. Coil the scavenge wire around the length of the sleeve, making sure that it has contact with the wires at both ends. Refer to the picture below.
6. Prepare the handle. You can use any tube-like material where you can insert the body and secure it in place to be you handle.
7. Insert the USB cable on the other end of the tube. Connect the G and V+ line of the cable to any of the two lines connected on the sleeve. Secure them with electrical tape to avoid contacts. Pull them inside the body screw or tape it to avoid unnecessary movements during the use.
Your New DIY Soldering Iron Should Only Be Used for a Short Time Before Being Replaced
Now you have your emergency DIY soldering iron from a broken one.
After you’re done with the repair, go buy another soldering iron, because this DIY project won’t last long. The sleeve will wear off in time and through continuous use. The lines will be corroded in no time because it is now uninsulated.
This hack is designed for temporary use, but you can find some designs built to last using some nichrome wires and fiberglass sleeves too—but with steady solid copper wires as the lines instead of the thin wires.
