How To Replace A Fluorescent Ballast

Updated on July 19, 2016
wilderness profile image

Dan has been a licensed, journey level electrician for some 17 years. He has extensive experience in most areas of the electrical trade.

Replacing A Ballast

Replacing a fluorescent ballast is not a terribly difficult job; as a professional electrician I have replaced hundreds of ballasts and it normally takes about 10 or 15 minutes if the light fixture itself isn't something special and difficult to disassemble. The job may look a little (or a lot) daunting with all those wires exposed, but it really isn't nearly as difficult as it looks and is often a much better choice than replacing an entire light fixture.

There will be three basic steps to changing out a ballast; removing the old ballast, choosing a new ballast, and wiring the new ballast into the fixture.

The steps are probably best when carried out in that order because it will be handy to have the old ballast in hand when buying a new one, so let's start with the first task listed.


Removing The Old Ballast

Fluorescent fixtures are designed and built with the idea that the ballast can be changed out one day without removing the whole fixture from the ceiling, but that doesn't mean that it is obvious or even easy for some fixtures.

In general fixtures that use four foot fluorescent lamps will have a channel running the length of the fixture and the ballast is located behind that raised portion of the fixture. While it is sometimes possible to remove a ballast with the lamps in place it is seldom worth the effort, so begin by removing all the lamps.

The cheap, "garage" or "shop" lights will have a cover behind the lamps that usually has one fastener on one end of it; twist the fastener ninety degrees and pull lightly to remove the cover. With the fastener removed from the fixture slide the cover toward that end; the other end has small clips that simply slide into place to hold the cover.

Be careful of the edges of that cover as it is thin sheet metal and can make a nasty cut if you slide your hand or fingers down the edge! I have been cut clear to bone simply by brushing lightly down the sharp edge of the cover with my hand - don't let it happen to you.

Click thumbnail to view full-size
This is actually an 8 foot fixture with 2 four foot lamps.  The ballast will be on one end.The small clip that must be rotated 90 degrees to remove the cover.The ballast is exposed, ready for removal.
This is actually an 8 foot fixture with 2 four foot lamps.  The ballast will be on one end.
This is actually an 8 foot fixture with 2 four foot lamps. The ballast will be on one end. | Source
The small clip that must be rotated 90 degrees to remove the cover.
The small clip that must be rotated 90 degrees to remove the cover. | Source
The ballast is exposed, ready for removal.
The ballast is exposed, ready for removal. | Source

Better quality fixtures will typically need to have a plastic lens removed, then the lamps followed by a sheet metal cover over the ballast.

This cover is removed by squeezing the sides together, pulling the edges of the cover from under small clips on the fixture. Occasionally the cover may be screwed in place, but that is rather uncommon.

The cover will then need to be worked out from the lamp holders on each end, but this is merely a matter of holding and turning it just right to clear them. The lamp holders do not normally need to be removed.

Click thumbnail to view full-size
A better "wrap" fixture with a plastic lens that "wraps" around the lamps and must be removed.The trough that must be removed to access the ballast.  It runs down the very center of the fixture.The small clip that holds the cover in place.  There are three down each side of this ballast cover; most have only two.  Squeeze the sides of the cover together to remove it.The cover is off, revealing the ballast.  On this fixture the outer two lamps are well out of the way and it was not necessary to remove them.
A better "wrap" fixture with a plastic lens that "wraps" around the lamps and must be removed.
A better "wrap" fixture with a plastic lens that "wraps" around the lamps and must be removed. | Source
The trough that must be removed to access the ballast.  It runs down the very center of the fixture.
The trough that must be removed to access the ballast. It runs down the very center of the fixture. | Source
The small clip that holds the cover in place.  There are three down each side of this ballast cover; most have only two.  Squeeze the sides of the cover together to remove it.
The small clip that holds the cover in place. There are three down each side of this ballast cover; most have only two. Squeeze the sides of the cover together to remove it. | Source
The cover is off, revealing the ballast.  On this fixture the outer two lamps are well out of the way and it was not necessary to remove them.
The cover is off, revealing the ballast. On this fixture the outer two lamps are well out of the way and it was not necessary to remove them. | Source

Some lights may need to have the entire reflective shield removed after taking the lamps out, and there will be a variety of possible methods to do this. The shield may be screwed in place, it may have some of the small twist clamps or it might even need to have other pieces removed first. There is no standard method of "hiding" the ballast and it may require some head scratching to find it, but it is always possible.

The fixture shown below is an expensive one often used in large stores that has been hung in a shop to provide lots of light, but it is still very similar to cheaper home fixtures in what must be done to change a ballast.

Some homes will have a two foot square fixture and these can require a little more effort as the ballast may be hidden in one end, but it is still a matter of figuring out where it is and removing cover plates to find it. They are intended to be replaceable and can be reached without undue effort.

Click thumbnail to view full-size
This fixture needs the entire reflective shield removed. One of the two plastic clips (on near each end) is shown here.A high quality fixture being used as a shop light.  It has 6 lamps and two ballasts, both on one end of the 8 foot fixture.
This fixture needs the entire reflective shield removed. One of the two plastic clips (on near each end) is shown here.
This fixture needs the entire reflective shield removed. One of the two plastic clips (on near each end) is shown here. | Source
A high quality fixture being used as a shop light.  It has 6 lamps and two ballasts, both on one end of the 8 foot fixture.
A high quality fixture being used as a shop light. It has 6 lamps and two ballasts, both on one end of the 8 foot fixture. | Source

With the cover removed and the ballast exposed it is time to remove the old ballast. Make sure the power is off! I cannot recommend enough the use of a voltage tester here. I always carry a non-contact voltage tester on the job and check everything that even might be powered up. Getting a nasty shock while standing near the top of a ladder isn't much fun - don't let it happen to you.

The switch can be turned off, turning the light off, but if you choose to do this rather than turning the breaker off at the panel it is suggested that you tape the switch(es) off with some electrical tape. It is too common to have someone else walk into the room and automatically flip the switch on as they do, just as you have your hands around the wires they are turning on. Make it obvious that the switch should not be turned on.

However you choose to turn the power off, make sure it is off and will not be turned back on while you are working. Tape the switch off so it can't be turned on by accident or turn the breaker off and tape the panel door shut. You don't want to turn a breaker off and then have someone realize that the lights in another room are off, find the "tripped" breaker and turn it on.

Surprise!  This light is still turned on and has hot wires in it.
Surprise! This light is still turned on and has hot wires in it. | Source

Undo the wire nuts on the black and white wires, putting the wire nuts back onto the wire not connected to the ballast as a safety measure. Cut the rest of the wires a few inches from the ballast, using wire cutters.

With covers and lamps out of the way, the ballast is most normally removed by removing a small nut or screw on one end and sliding the ballast towards the screw and out from under the clips that hold the other end.

Safety First, Always!

Personal safety cannot be emphasized enough when working around electricity. The non contact voltage detector shown above is a perfect example of how to protect yourself. Make sure you work safely, please.

If you need one of these nifty tools, a link is given below to purchase one and the link shown here will take you to an article listing various models and giving instructions on how to use one.

Non Contact Voltage Detector from Amazon

Magnetic vs Electronic

Magnetic ballasts are generally rapid start and have two wires to each tombstone while electronic ballasts are usually instant start and usually have only one wire per lampholder. Matching wire colors, number of wires and number of lamps will give a ballast that be used as a direct replacement without re-wiring the tombstones. Electronic rapid start ballasts are available that will replace a magnetic ballast without re-wiring the lampholders.

Choosing A New Ballast

Older ballasts (most likely the one you are replacing) are generally the magnetic type, while newer ballasts are of the electronic variety and are more efficient. Ballasts can be either rapid or instant start, and are specific as to the number and type of lamps they operate. Magnetic ballasts are typically of the rapid start type but can still operate 1,2,3 or 4 lamps and must have the proper number of lamps. Electronic ballasts can operate a fewer number of lamps than they are designed for, but it is still a good idea to purchase the right ballast.

A ballast designed for T12 (the larger diameter 4' ones) will not operate a T8 (smaller diameter but more efficient) lamp even though the T8 lamp is still 4' long. The wattage is different and the ballast must be matched to the proper wattage. Take note of the wattage stamped on the lamp and purchase the appropriate ballast according to what is already in the fixture, the wattage of the lamp and how many lamps that the ballast is operating. Some fixtures have two ballasts in them, so make sure you know how many lamps the replacement ballast must operate.

The older magnetic ballast may be replaced by a newer, more efficient electronic ballast but it will likely require re-wiring the tombstones (lamp holders). Should you choose to do this (recommended) the tombstones will have to be removed as well, the wires removed from them, and new wires put in according to the wiring diagram on the new ballast. The wiring methods may be different for magnetic and electronic ballasts and this must be corrected if the type of ballast is to be changed.

An older magnetic ballast in use.
An older magnetic ballast in use. | Source

Installing The New Ballast

You will need a handful of small wire nuts (one for each wire) and a pair of wire strippers.

Attach the ballast in the same manner as the old one. In very rare cases the physical size will be different; if this is the case it can be simply screwed to the top of the fixture with self tapping sheet metal screws. Just make sure it is within the footprint of the cover as necessary.

Splice the black and white wires to the matching colors, using the wire nuts that were on them originally.

If the ballast is of the same type as the one removed, match color to color on the wires and splice them together. A red wire, for instance, from the ballast will go to a red wire from a lamp holder and although there may be two from each it won't matter which one goes where. Just don't splice the two red wires from the ballast together thinking one is from a lamp - I've seen this done from the factory and it does not work well!

If a different type of ballast is being used, follow the wiring diagram on the ballast and change the wiring to the tombstone as necessary.

With the wires all attached, replace the ballast cover, lamps and any lens that was removed. Turn the light on to check it.

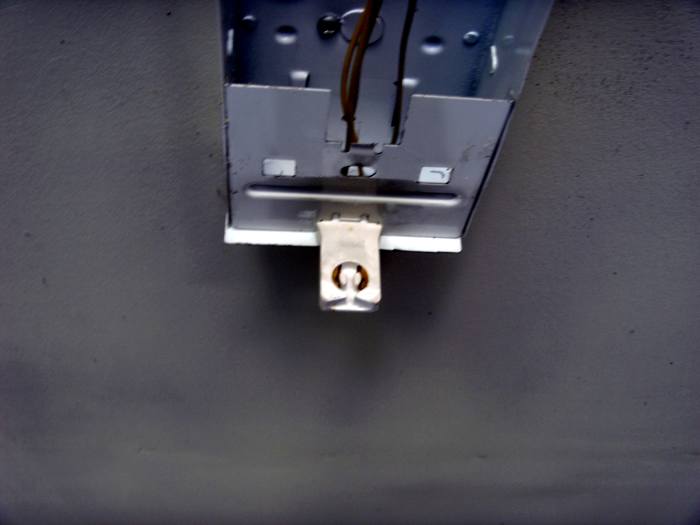

A typical tombstone on a shop light.  It is removed by spreading the sides of the fixture slightly, dropping the metal piece across the center, and sliding the tombstone out.
A typical tombstone on a shop light. It is removed by spreading the sides of the fixture slightly, dropping the metal piece across the center, and sliding the tombstone out. | Source

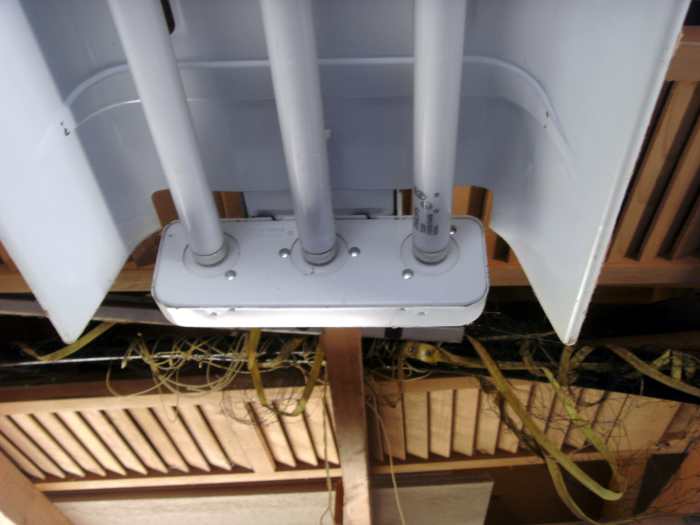

An unusual set of lamp holders, and probably only available from the manufacturer if at all.
An unusual set of lamp holders, and probably only available from the manufacturer if at all. | Source

Comments

    0 of 8192 characters used
    Post Comment

    • GoodLady profile image

      Penelope Hart 4 years ago from Rome, Italy

      Read it and tried to translate to my companion 'electricista' who nodded a sort of yes, yes yes all the time. Thanks goodness for electricians. I can't get my had round it all. Seems so complicated.

      Surely an extremely helpful Hub!

    • Sun State 4 weeks ago

      Read it, replaced new ballast exactly the same way the old was wired, but the tubes only light up with half the brightness they should. Trying to change a 2 tube T8 ballast in laundry room. Rechecked everything with wiring diagram on ballast, and it is the same. What am I not seeing?

    • wilderness profile image
      Author

      Dan Harmon 4 weeks ago from Boise, Idaho

      If everything is the same, the only thing I can think of is that you have a ballast intended for 277 volts instead of the normal house 102 volts. You might check that.

      If not an improper ballast, check all splices for loose connections and double check that the wires go to the tombstones where you think they do - sometimes they get turned inside hidden areas and don't do what you think they do.

      You haven't damaged a tombstone in the work process, have you? Other than these things I'm at a loss.
