How to Cut Wood at an Angle With a Hand Saw or Miter Saw

Updated on January 22, 2018
eugbug profile image

Eugene, an avid self-taught DIYer, has acquired 30 years of experience with power/hand tools, plumbing, electrics, and woodwork.

Source

3 Ways to Cut Timber

Making accurate square (90 degree) and mitered (angled) cuts in timber is an essential skill when making joints in furniture and in building construction. Even if you don't attempt any serious DIY, the need sometimes arises to cut a length of timber reasonably accurately. For instance, architrave may need to be cut around a window or doorway, skirtboards (baseboards) at the base of a wall have to be renewed, or a board from the cladding on your home or shed gets damaged and must be replaced. This hub shows you three methods to cut timber.

If you find this article useful, please share it on Facebook or other social media using the easy share buttons.

Thanks!

How to Cut Wood at an Angle?

  1. Mark and cut by eye. Not terribly accurate but ok if measurements and squareness isn't critical
  2. Use a miter box. This guides the saw and gives better results. However you can only make 45 and 90 degree cuts
  3. Use a miter saw. This is the most accurate method of cutting lengths of timber at any angle

Note: 'Miter' is spelled 'mitre' in UK English

Method 1 - Cut Without a Guide

The most basic method of cutting timber is to simply mark it and cut by eye. For basic work where accuracy isn't important, this is quite adequate. However unless you have a good eye and have become skilled from years of practice, the results are variable, and beginners will end up with crooked cuts on the end of timber.

Step 1 First Mark the Dimensions on the Timber

Use a sharpened pencil to produce a thin marking line on the wood. Hold the tape close to one of the edges and mark the required dimension.


Note: If you buy lumber from a store, the end will likely be a 90 degree cut, but check it before hand with your carpenters square. If it isn't, initially follow steps 2 to 4 of the marking out and cutting instructions below to remove a small section at the end of the timber (keep about 1/2 inch in from the edge). Once this is done, you can continue to measure, mark and cut the required length.

First check the end of the timber is square
First check the end of the timber is square | Source
Mark the required measurement on the timber with a short pencil tick
Mark the required measurement on the timber with a short pencil tick | Source

Step 2 Use a Carpenters Square to Mark Top Side

A carpenters square allows you to make a right angled mark across the timber. You can also use an engineers square or a triangle (set square in UK English). Hold the "stock" or handle of the square tightly against the wood while marking. Ideally you should position the tip of the pencil on the mark you made initially when measuring, and slide the square so that it butts against the tip, then mark along the square.

Use a square to produce a right angled pencil line guide
Use a square to produce a right angled pencil line guide | Source

Step 3 Mark the Two Vertical Sides

Continue to mark the two vertical sides of the timber.

Mark a guide line on both the vertical sides
Mark a guide line on both the vertical sides | Source

Step 4 Hold the Wood Securely and Cut With a Hand Saw

If you have a vice, use this to hold the wood securely while sawing, alternatively use your knee and a stool, low table, Black and Decker Workmate or whatever.

Use the pencil lines on the vertical surfaces of the timber as guides while sawing and try to keep the saw blade straight.

Hold the timber securely in a vice
Hold the timber securely in a vice | Source
You can also use your knee to hold it
You can also use your knee to hold it | Source
Keep your thumb out of the way in case the saw slips!
Keep your thumb out of the way in case the saw slips! | Source
Quick release clamps are useful for holding timber
Quick release clamps are useful for holding timber | Source

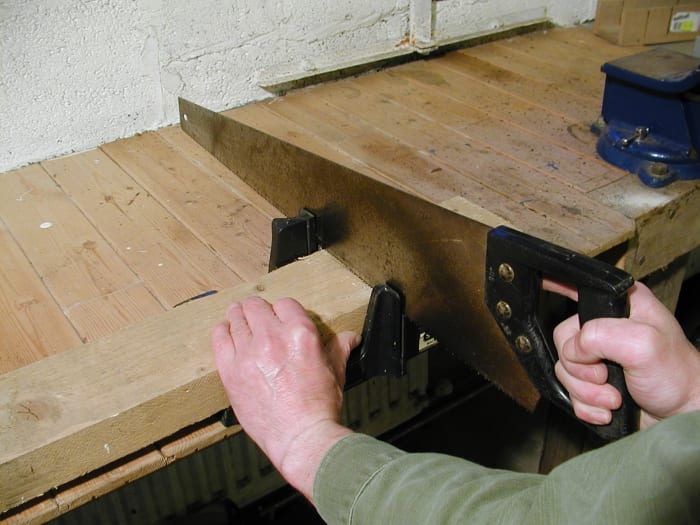

Method 2 - Using a Miter Box

This gives improved accuracy when cutting. A miter box has slots in its vertical sides which act as guides and prevent the blade of a saw from sloping from the vertical. Metal, wood and plastic versions are available. Some need to be held in a vise while others have a "hook" or raised edge on the underside which can be butted up against the edge of a bench.
A miter box enables you to make 90 degree cuts in timber and usually 45 degree cuts also.
When cutting timber, cut on the waste side of the line rather than the center line.

Various types of miter boxes
Various types of miter boxes | Source
This miter box has a "lip" or hook on the underside which allows it to be pushed tightly against the edge of a bench
This miter box has a "lip" or hook on the underside which allows it to be pushed tightly against the edge of a bench | Source

Using a Tenon Saw

A tenon saw is shorter than a "normal" hand saw and is less cumbersome to cut with. It also has smaller teeth (the pitch is greater), which reduces the tendency of the blade to tear or chip the ends of wood fibers whilst cutting. Thirdly the rigid spine of the saw stops the blade from curving and warping too much while cutting. All this helps to give better results, which is important if you are making furniture or other stuff where accuracy and finish is important.
When cutting, position the blade and teeth of the saw so that you cut on the waste side of the pencil line rather than cutting along the center of the line. The kerf or width of the saw cut can produce "gaps" if you are cutting joints or doing other fine work. The slight error in length due to the kerf of the saw when cutting on the center of the pencil line, can accumulate and cause a greater error (e.g. if several pieces are cut to size and placed side by side)

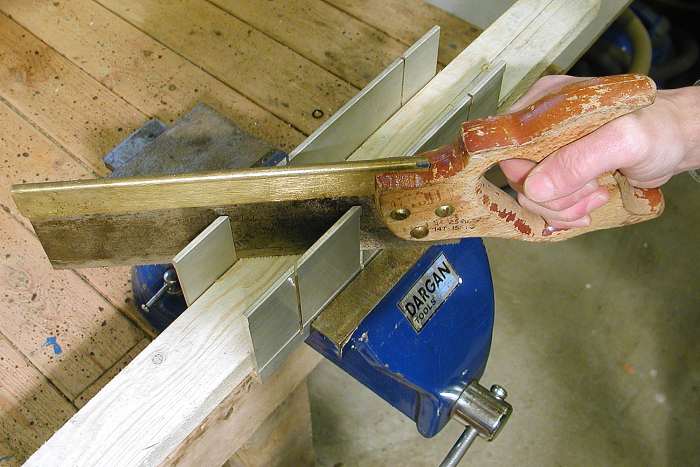

The slots in metal miter boxes don't wear away as quick from contact with the teeth of a saw
The slots in metal miter boxes don't wear away as quick from contact with the teeth of a saw | Source
A miter box and tenon saw produced these results
A miter box and tenon saw produced these results | Source

Making and Using a Marking Knife

A pencil is fine for rough work, however a marking knife never gets blunt and produces a fine line, allowing you to produce more accurate results when cutting joints. You can make one by cutting a 45 degree angle on an old dinner knife with an angle grinder and then sharpening it. You could use a Stanley knife, however the advantage of a long bladed flexible knife is that it can reach into tight spaces. (This knife also comes in handy for spreading silicone sealant and putty!)

A sharpened dinner knife used for marking timber
A sharpened dinner knife used for marking timber | Source
Source

Method 3 - Using a Miter Saw

A miter saw is a power saw designed to produce rapid and accurate 90 degree and angled (mitered) cuts. It's a virtually essential tool when framing, i.e. building stud walls. A basic saw will cut timber up to 4 x 2 in size, but a sliding miter saw has a cutting head which slides on a rail, allowing timber up to 9 x 3 to be cut without requiring a huge diameter disk.
Blades are available for miter saws with a varying number of teeth. Coarse toothed blades cut rapidly through timber. Blades with lots of fine teeth are slower but give a cleaner cut.
It is usually possible to calibrate the saw by way of adjusting grub screws to ensure that the saw actually does give a square cut. You can check your cuts with a carpenter's square to see if the saw is cutting accurately and make adjustments as necessary.
The kerf, which you'll remember is the width of the saw cut, is normally wider, typically 2 or 3 mm (1/8") for a miter saw blade than it is for a hand saw. So it's more important to cut on the waste side of your pencil line to avoid inaccuracy.

WARNING

Like any power tool, a miter saw can be dangerous.

  • Make sure the guard on the saw is operating correctly and covers the blade when the cutting head of the saw is returned to its rest position
  • Hold timber securely against the back fence of the saw while cutting, and ensure that long lengths of timber are adequately supported so that they don't overbalance the saw or rise up and hit the blade. Usually clamps are provided on the saw for holding timber in place while cutting
  • Don't work with power tools if you are tired. Poor concentration can cause accidents
  • Don't use a blade with blunt teeth or teeth which have lost their tungsten carbide tips. A blunt blade can snag in timber
  • Don't work in wet conditions
  • Keep your hand clear of the blade while cutting. You might loose fingers!
  • Always wear safety glasses in case you hit knots or nails/screws in waste timber. If you are doing lots of cutting, wear ear muffs or plugs and a dust mask

Miter Saw

A mitre saw can make 90 degree square, and angled (mitred) cuts in timber.
A mitre saw can make 90 degree square, and angled (mitred) cuts in timber. | Source

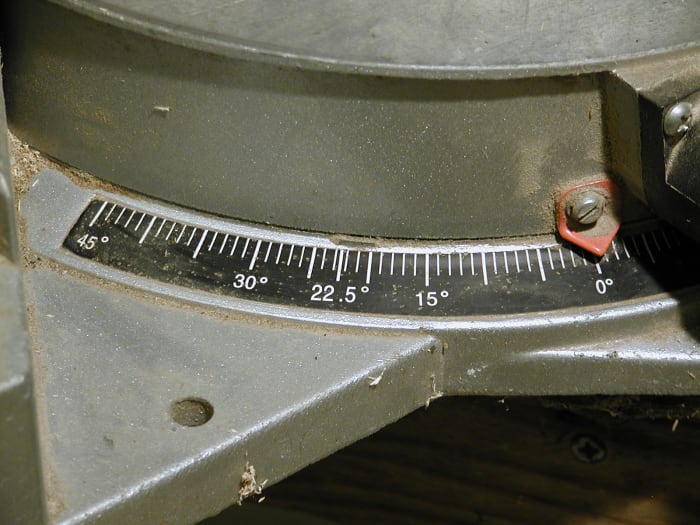

This scale indicates the miter angle. 0 degrees is for cutting right angles. The table can be turned to make cuts up to 45 degrees
This scale indicates the miter angle. 0 degrees is for cutting right angles. The table can be turned to make cuts up to 45 degrees | Source

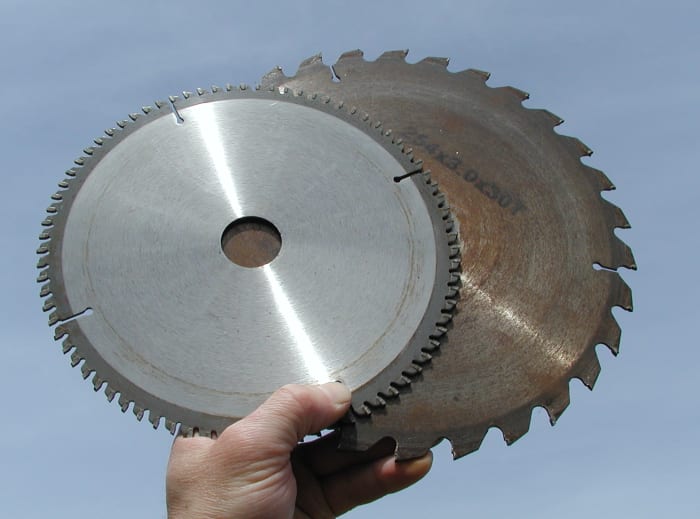

Fine pitch blades are available which give a cleaner cut
Fine pitch blades are available which give a cleaner cut | Source

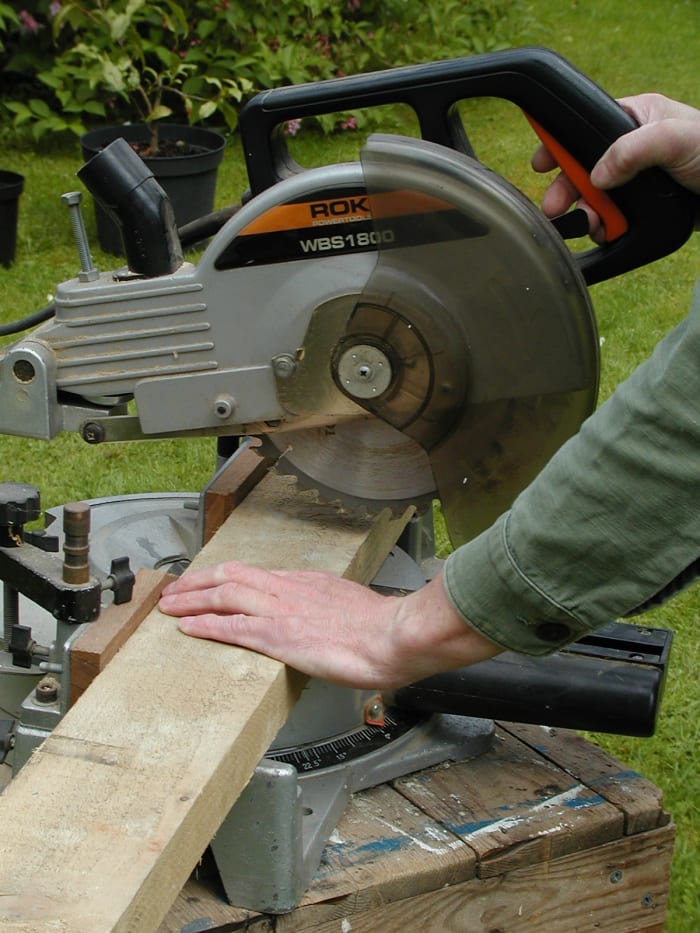

Cutting with a miter saw. The guard retracts when cutting and should return when you raise the cutting head
Cutting with a miter saw. The guard retracts when cutting and should return when you raise the cutting head | Source

Mmmmmmm Square!

A miter saw gives an accurate cut if it's setup properly
A miter saw gives an accurate cut if it's setup properly | Source

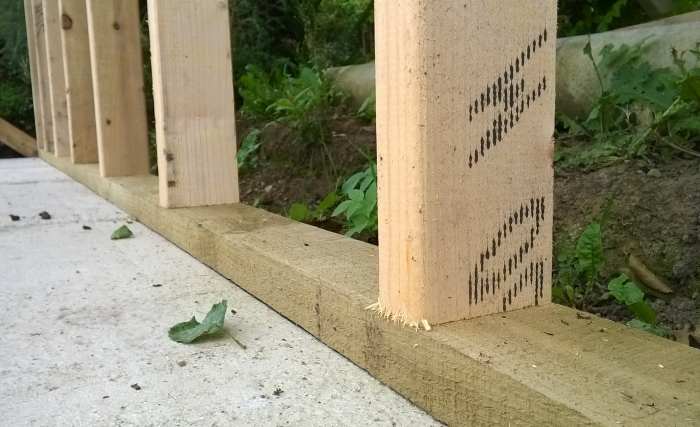

A miter saw is virtually essential for rapidly producing accurate square cuts when framing (building timber frame walls)
A miter saw is virtually essential for rapidly producing accurate square cuts when framing (building timber frame walls) | Source

Did You Find This Article Useful?

Was the info in this article useful and instructive? How can I improve it? Would you like to ask me any questions?

Please provide some feedback below, and also I would appreciate if you could pin it on Facebook or Pinterest.

Thanks!
