Installing and Wiring a Light Fixture

How to install and wire your own light fixture

Installing and wiring a light fixture is not a very difficult task, but does need to be approached with a degree of caution. Electricity is involved and if you allow it to it can give a nasty shock to the careless worker. Never take chances around electricity.

The first step is always to turn off the current. Turn the light on and find the correct circuit breaker in your breaker panel. If necessary turn them off one at a time until the light goes out. Do not depend on the light switch to turn off the power to the light; someone else could turn it back on, especially if it is only one of two or more switches controlling the same light fixture. If you absolutely must leave the circuit breaker on turn off the switch and tape it into the off position with a piece of masking or electrical tape. Repeat for all the switches that might control that particular light fixture. It is not as safe as turning off the breaker, but hopefully it won't be accidentally bumped on and anyone trying to turn it on will at least pause and ask before doing so. As a professional electrician I not only turn off all power but check with a voltage tester to make absolutely sure there is no current at the light.

Voltage testers are a virtual necessity for anyone doing electrical repair or work in their home. Please consider the purchase of one of these inexpensive items before performing such work. As a professional electrician there is always one in both my pocket and toolbox, just as a spare in case one fails.

Tools for installing and wiring a light fixture

There are only a few tools and supplies necessary for the task as follows:

  • Screwdrivers. Either or both a flat tip and a phillips tip screwdriver may be needed - older screws in an existing fixture often need a flat tip, while newer screws are usually a phillips tip.
  • Wire strippers. If a new installation wire strippers will be needed. If you are replacing an existing fixture the wires should be already stripped.
  • Pliers. Pliers may be needed to tighten supporting nuts on the light fixture
  • Wire nuts. Probably supplied with the new fixture, but if not a few wire nuts will be needed.
  • While not absolutely necessary, a non contact voltage detector is an inexpensive method of maintaining your safety. A nasty shock in the middle of the job isn't pleasant.

All of these tools should be in a homeowner tool set; but if not it would be a good time to start or finish your own tool set.

Removing the old fixture

New light with all the parts.  The support bracket shown will not be used this time.
New light with all the parts. The support bracket shown will not be used this time.
Old fixture to be removed
Old fixture to be removed
Checking for voltage; this wire is live!
Checking for voltage; this wire is live!
Old fixture removed.  Note the 1/2" of insulation removed; it's about right.
Old fixture removed. Note the 1/2" of insulation removed; it's about right.

Remove the old light fixture and prepare wires

Any old fixture already installed must be removed before installing a new light fixture. Remove any glass globes and light bulbs as necessary; you won't want them falling off during the process. Most light fixtures are attached with two screws but some use a large nut to hold the fixture to the ceiling. Loosen and remove the screws or nut as appropriate and gently lower the fixture as far as possible. If there is a mounting bracket attached to the electrical ceiling box, remove and discard it.

Now is a good time to check for voltage with a non contact voltage tester if one is available, before proceeding with the removal. Older houses will occasionally have wiring that is not color coded or is too darkened to readily determine the wire colors - if this is the case make careful note of which house wire is connected to the black and white wires in the light fixture and mark them with a piece of tape for future reference. Remove the wire nuts connecting the house wiring to the light fixture and replace the nuts loosely on the house wiring as a safety precaution. As an elementary safety act, try not to touch the bare wires; yes, current is turned off but a good electrical safety practice is not to touch any wire that could carry current whether turned off or not. Far too many people have been shocked by wires they thought were off, don't let it happen to you.

If the new light fixture is smaller than the old one and will leave an unpainted area of the ceiling visible it would be a good time to apply a little paint. Most house paints will dry in only a few minutes and doing the painting without a new light fixture in the way will be much easier.

Wiring the new light fixture

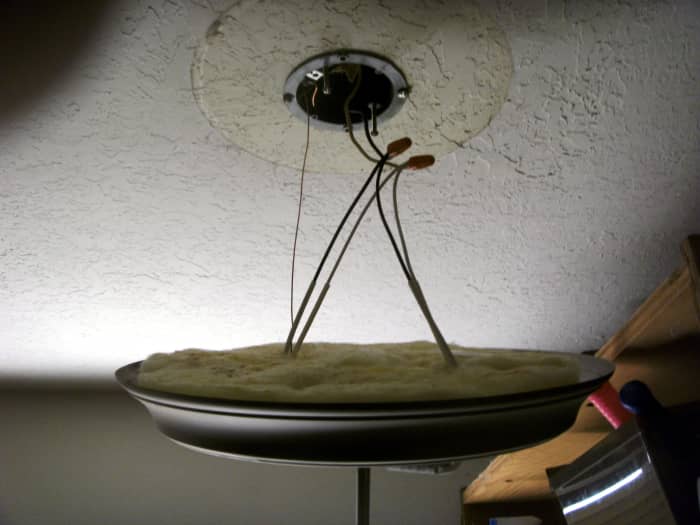

Wiring the new light fixture.  Note that the bare ground wire is going to a green screw in the box that also has the house wiring ground to it.  An easy connection for the two ground wires.
Wiring the new light fixture. Note that the bare ground wire is going to a green screw in the box that also has the house wiring ground to it. An easy connection for the two ground wires.

How to wire the new light fixture

Before wiring the new light fixture, check the existing house wiring for problems. Make sure there are no burned places with bare wiring showing (except for the ground wire; it is normally bare of any insulation or has green insulation). Check that any existing wire nuts are tight by holding the nut in one hand and firmly tugging on each individual wire. If any loose nuts are found tighten or replace as necessary.

If the new light fixture will require a mounting bracket across the electrical box in the ceiling attach that bracket to the ceiling box in preparation for installing the new light fixture.

Connect the house wiring to the new light fixture, making sure that the house white wire connects to the fixture white wire and the house black wire connects to the black wire on the fixture. The house wiring should include a bare ground wire without insulation (or possibly a wire with green insulation) to connect to the bare wire in the fixture, but if not connect the bare wire in the new light fixture to the mounting bracket with the green ground screw provided. Again check the tightness of the new wire nuts by tugging on each individual wire while holding the nut in the other hand.

Installing the new fixture

The old screws were left in place and re-used as the new fixture lined up perfectly.  This is common and simplifies the process somewhat.
The old screws were left in place and re-used as the new fixture lined up perfectly. This is common and simplifies the process somewhat.

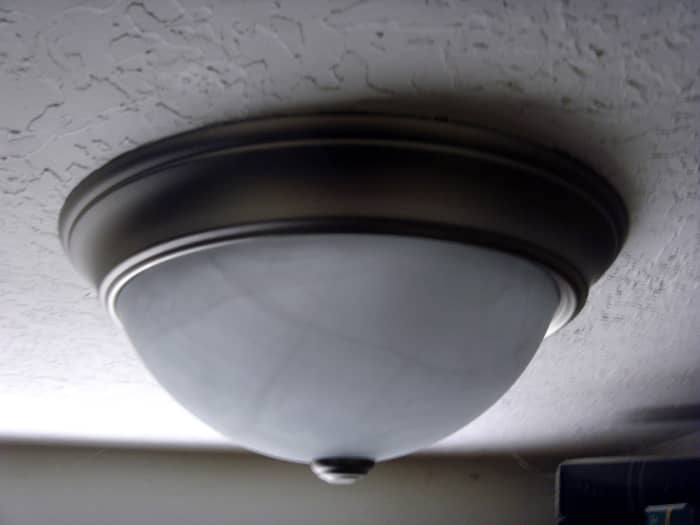

Installing the new light fixture

Most light fixtures have a layer of insulation on the upper side, against the ceiling. Try not to disturb this insulation; it is there to keep the heat from the light fixture from going up into the wiring box.

Tuck the wires into the ceiling box as much as possible and attach the light fixture to the box, using either the two screws or the long tube and nut that fits in the mounting bracket. Your new light fixture will have instructions and diagrams on exactly how to attach your particular fixture.

Tighten the screws or nut firmly, but do not deform the light fixture. Few fixtures fit tight against the ceiling at all points and it is possible to deform it badly by turning screws and nuts too far.

Install light bulbs as necessary and attach any light globes that are needed. Most globes are attached with small thumbscrews; again do not overtighten these screws as it will break the glass globe. Tighten just enough to hold the globe in place. Choose light bulbs according to the label on the new light fixture and make sure they are not too high a wattage. A good choice that will save considerable electricity are the small "corkscrew" flourescent light bulbs or even the newer LED lamps. These have come down considerably in price the last few years and are becoming a viable option for savings.

If you have read this article and still have doubts about your ability to install or wire a new light fixture may I suggest this hub about learning how to do your own home repairs and improvements.
