How to Use a Multimeter to Measure Voltage, Current and Resistance

Updated on August 1, 2019
eugbug profile image

Eugene is a qualified control/instrumentation engineer Bsc (Eng) and has worked as a developer of electronics & software for SCADA systems.

What is a Multimeter?

A digital multimeter or DMM is a useful instrument for measuring voltage, current and resistance, and some meters have a facility for testing transistors and capacitors. You can also use it for checking continuity of wires and fuses. If you like to DIY, do car maintenance or troubleshoot electronic or electrical equipment, a multimeter is a handy accessory to have in your home toolkit.

If you have any questions, just leave a comment at the end of this "how to" guide. Also if you find this article useful, please share it on Facebook, Pinterest or other social media using the easy share buttons.


Volts, Amps, Ohms - What Does it All Mean?


This is the pressure in an electrical circuit


This is a measure of the current flowing in an electrical circuit


A measure of the resistance to flow in a circuit

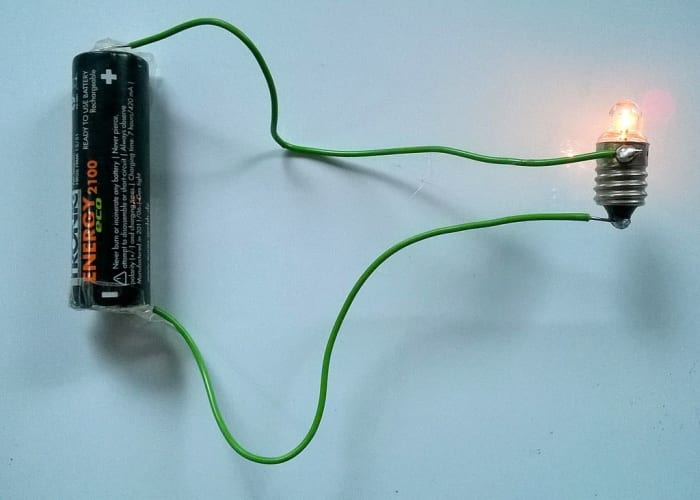

Voltage Source

This produces a current flow in a circuit. It could be a battery, portable generator, mains supply to a home, alternator on your car engine or bench power supply in a lab or workshop


A device or component which draws power from a voltage source. This could be an electronic resistor, bulb, electric heater, motor or any electrical appliance


This is usually the point in a circuit to which the negative terminal of a battery or power supply is connected


Direct current. Current flows only one way from a DC source, an example of which is a battery


Alternating Current. Current flows one way from a source, reverses, and then flows the other way. This happens many times a second at a rate determined by the frequency which is typically 50 or 60 hertz. The mains supply in a home is AC


A term used to describe the direction of flow of current in a circuit or which points are positive and which are negative wrt a reference point

For more detailed information about these quantities, take a detour to my other article:

Volts, Watts, Amps, Kilowatt Hours, What Does it All Mean ? - The Basics of Electricity

What Does a Multimeter Measure?

A basic multimeter facilitates the measurement of the following quantities:

  • DC voltage
  • DC current
  • AC voltage
  • AC current (not all basic meters have this function)
  • Resistance
  • Continuity - indicated by a buzzer or tone

In addition meters may have the following functions:

  • Capacitance measurement
  • Transistor HFE or DC current gain
  • Temperature with an additional probe
  • Diode test
  • Frequency

The value measured by the instrument is indicated on an LCD display or scale. Laboratory bench DMMs sometimes have seven segment LED displays.

Ho Do I Setup a Multimeter to Measure Volts, Amps or Ohms?

Voltage, current and resistance ranges are usually set by turning a rotary selection dial. This is set to the quantity being measured, e.g. AC volts, DC volts, Amps(current) or Ohms (resistance).

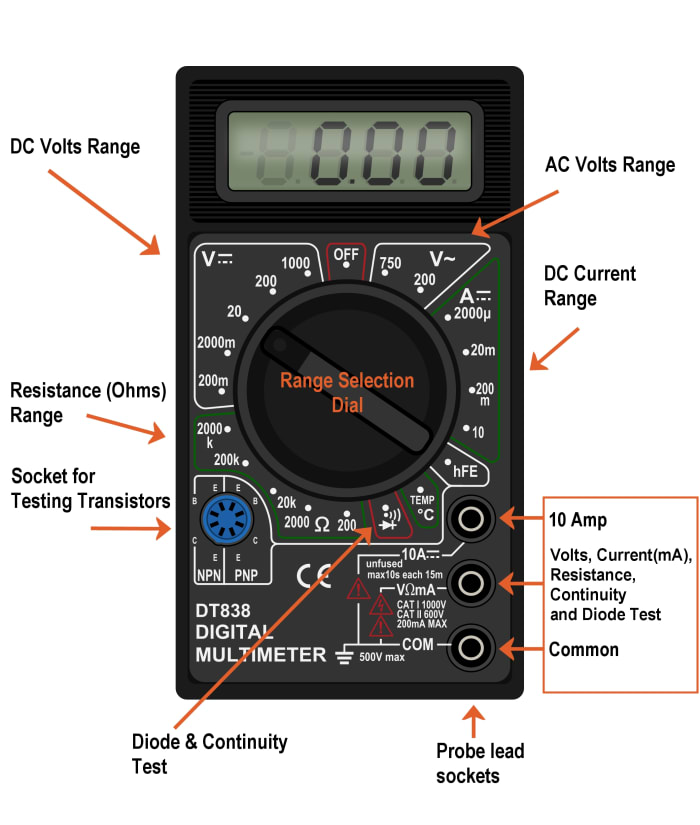

Voltage, Current and Resistance Ranges

A range selector dial is used to select the function (volts, amps, resistance) and range. Note the symbols used for AC and DC. See graphic further down this article for an explanation.
A range selector dial is used to select the function (volts, amps, resistance) and range. Note the symbols used for AC and DC. See graphic further down this article for an explanation. | Source


Damaged probes and test leads are a hazard. Never use a damaged probe to measure mains voltages!

Exposed conductor of test lead
Exposed conductor of test lead | Source

How to Measure Voltage

  1. Power off the circuity/wiring under test if there is a danger of shorting out closely spaced adjacent wires, terminals or other points which have differing voltages.
  2. Plug the black ground probe lead into the COM socket on the meter (see photo below).
  3. Plug the red positive probe lead into the socket marked V (usually also marked with the Greek letter "omega" Ω and possibly a diode symbol).
  4. If the meter has has a manual range setting dial, turn this to select AC or DC volts and pick a range to give the required accuracy. So for instance measuring 12 volts on the 20 volt range will give more decimal places than on the 200 volt range.
    If the meter is autoranging, turn the dial to the 'V' setting with the symbol for AC or DC (see "What Do the Symbols on the Range Dial Mean?" below).
  5. A multimeter must be connected in parallel in a circuit (see diagram below) in order to measure voltage. So this means the two test probes should be connected in parallel with the voltage source, load or any other two points across which voltage needs to be measured.
  6. Touch the black probe against the first point of the circuitry/wiring.
  7. Power up the equipment.
  8. Touch the other red probe against the second point of test. Ensure you don't bridge the gap between the point being tested and adjacent wiring, terminals or tracks on a PCB.
  9. Take the reading on the LCD display.

Note: A lead with a 4mm banana plug on one end and a crocodile clip on the other end is very handy. The croc clip can be connected to ground in the circuit, freeing up one of your hands.

Connecting Probe Leads to Measure Voltage

Test leads and 4mm sockets on a DMM, setup to measure voltage
Test leads and 4mm sockets on a DMM, setup to measure voltage | Source

Series and Parallel Connections

Explaining series and parallel connections (R1, R2 and R3 are resistors)
Explaining series and parallel connections (R1, R2 and R3 are resistors) | Source

Measuring Voltage - Meter in Parallel With Load

DMM connected in parallel with load to measure voltage across it
DMM connected in parallel with load to measure voltage across it | Source


When measuring mains voltages, always turn off power before connecting measuring probes. Always connect to the neutral first.

WARNING !!! Safety First When Measuring Mains Voltages!

  1. Before using a meter to measure mains voltages, ensure the test leads aren't damaged and that there are no exposed conductors which could be touched inadvertently.
  2. Double check that the test leads are plugged into the common and voltage sockets of the DMM (see photo below) and not the current sockets. This is essential to avoid blowing up the meter.
  3. Set the range dial on the meter to AC volts and the highest voltage range.
  4. Always turn off the power (if possible) before inserting the probes into a socket outlet, using the switch on the socket. Insert a probe into the neutral pin first before inserting a probe into the hot (live) pin of the socket. If you insert the probe into the hot (live) pin first and the meter is faulty, current could flow through the meter to the neutral probe. If you then inadvertently touch the probe, there is a possibility of shock.
  5. Finally turn on the power switch and measure the voltage.

Ideally buy and use a meter with a least CAT III or preferably CAT IV protection for testing mains voltages. This type of meter will incorporate high rupturing capacity (HRC) fuses and other internal safety components that offer the highest level of protection against overloads and transients on the line being tested. A meter with less protection can potentially blow up causing injury if it is connected incorrectly, or a transient voltage generates an internal arc.

If you are measuring voltage at a consumer unit/breaker box/fuse box, this video from Fluke Corporation outlines the precautions you should take

Safe Practice When Taking Single Phase Measurement

Also these safety guidelines by Fluke explain the hazards of voltage spikes and the Overvoltage Installation Category

ABCs of Multimeter Safety

Identifying Live or Hot Wires

A Fluke "VoltAlert™" non-contact voltage detector is a standard tool in any electricians tool kit, but useful for homeowners also. I use one of these for identifying which conductor is live whenever I'm doing any home maintenance. Unlike a neon screwdriver tester (phase tester), you can use one of these in situations when live parts/wires are shrouded or covered with insulation and you can't make contact with wires. It also comes in useful for checking whether there's a break in a power flex and where the break occurs.

Note: It's always a good idea to use a neon tester to double check that power is definitely off when doing any electrical maintenance.

What Do the Symbols on the Range Dial Mean?

Symbols used on an autoranging DMM
Symbols used on an autoranging DMM | Source

What Multimeter Should I Buy?

When asked, Fluke, who are a leading manufacturer of digital instrumentation, recommended the Fluke 113 model for general purpose use in the home or for car maintenance. This is an excellent meter and can measure AC and DC volts, resistance, check continuity and diodes. The meter is auto-ranging, so ranges don't have to be set. It is also a true-RMS meter. It doesn't measure current, so If you need to measure AC and DC current, the Fluke 115 has this added facility.

An alternative is the Fluke 177 model which is a high accuracy instrument (the specification is 0.09% accuracy on DC volts). I use this model for more accurate testing and professional use and it can measure AC and DC voltage and current, resistance, frequency, capacitance, continuity and diode test. It can also indicate max and min values on each range.

Fluke's multimeter recommendation
Fluke's multimeter recommendation | Source

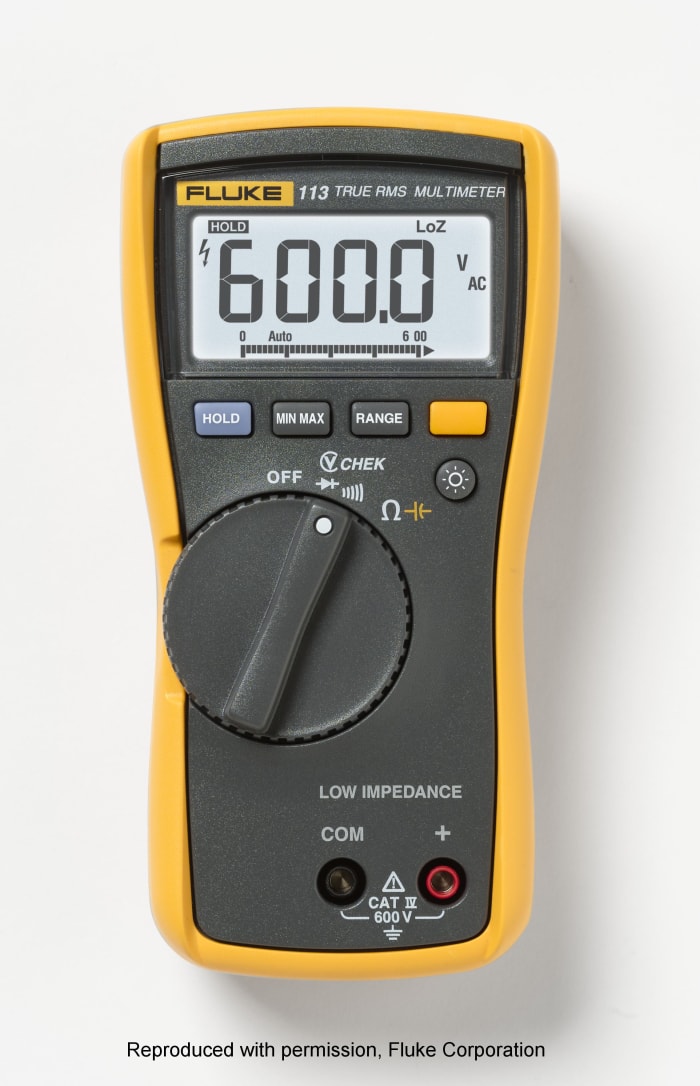

Fluke 113 general purpose true RMS digital multimeter.
Fluke 113 general purpose true RMS digital multimeter. | Source

Autoranging Meters

Autoranging meters detect the voltage and select the range automatically to give the most amount of significant digits on the display. You must however set the mode to resistance, volts or current and also connect the probe lead to the proper socket when measuring current.

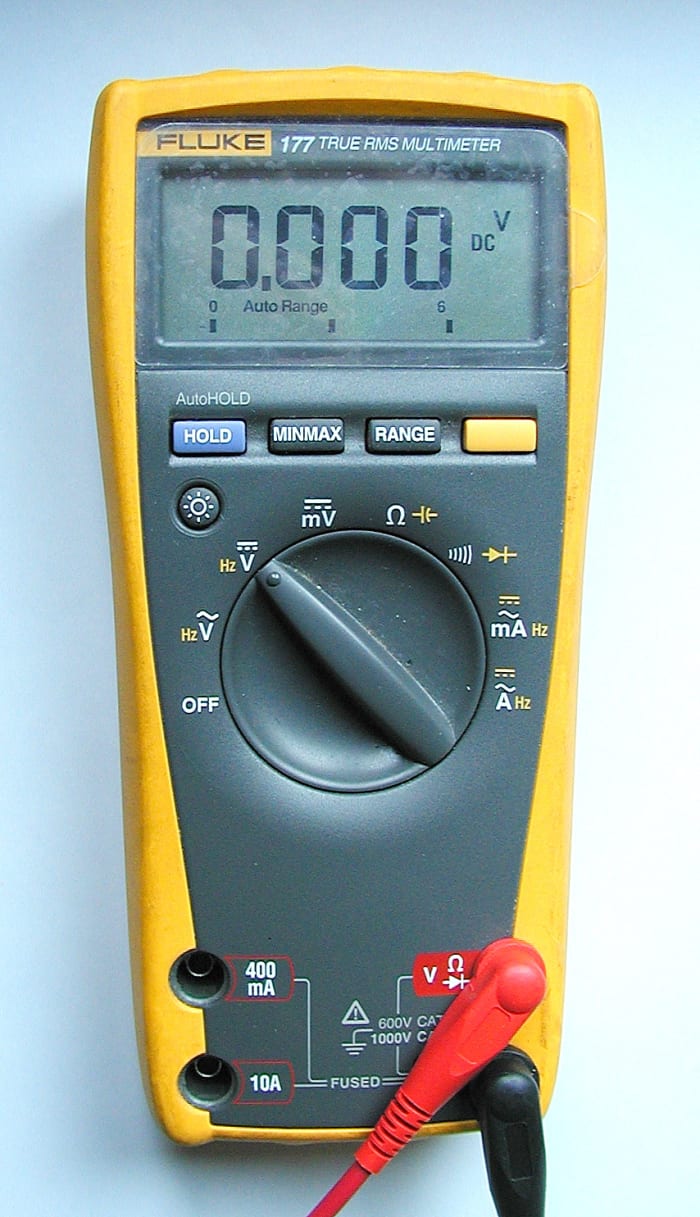

Fluke 177 Multimeter with Auto-Ranging Facility

This autoranging multimeter from Fluke, a leading manufacturer of electronic test equipment, has an accuracy of 0.09% on DC ranges. It also has CAT IV protection to 600volts
This autoranging multimeter from Fluke, a leading manufacturer of electronic test equipment, has an accuracy of 0.09% on DC ranges. It also has CAT IV protection to 600volts | Source

How to Measure Current

  1. Turn off the power in the circuit being measured.
  2. Connect the probe leads as shown in the photo below. Plug the black ground probe lead into the COM socket.
  3. Plug the red positive probe lead either into the mA socket or the high current socket which is usually marked 10A (some meters have a 20 A socket instead of 10A). The mA socket is often marked with the maximum current and if you estimate that the current will be greater than this value, you must use the 10 A socket, otherwise you will end up blowing a fuse in the meter.
  4. A multimeter must be inserted in series in a circuit in order to measure current. See the diagram below.
  5. Turn the dial on the meter to the highest current range (or the 10A range if the probe is in the 10A socket). If the meter is autoranging, set it to the "A" or mA setting. (See the photo above for an explanation of symbols used).
  6. Turn on the power.
  7. If the range is too high, you can switch to a lower range to get a more accurate reading.
  8. Remember to return the positive probe to the V socket when finished measuring current. The meter is practically a short circuit when the lead is in the mA or 10 A socket. If you forget and connect the meter to a voltage source when the lead is in this position, you may end up blowing a fuse at best or blowing up the meter at worst! (On some meters the 10A range is un-fused).

Connecting Probe Leads to Measure Current

Test leads and sockets on a DMM, setup to measure current
Test leads and sockets on a DMM, setup to measure current | Source

Measuring Current - Meter in Series

DMM connected in series with load  to measure current flowing through it
DMM connected in series with load to measure current flowing through it | Source

Measuring Large Currents with a Clamp Meter (Tong Tester)

On most multimeters, the highest current range is 10 or 20 amps. It would be impractical to feed very high currents through a meter because normal 4 mm sockets and test leads wouldn't be capable of carrying high currents without overheating. Instead, clamp meters are used for these measurements.

Clamp meters (as the name suggests), also known as tong testers, have a spring loaded clamp like a giant clothes peg which clamps around a current carrying cable. The advantage of this is that a circuit doesn't have to broken to insert a meter in series, and power needn't be turned off as is the case when measuring current on a standard DMM. Clamp meters use either an integrated current transformer or hall effect sensor to measure the magnetic field produced by a flowing current. The meter can be a self contained instrument with an LCD which displays current, or alternatively the device can output a voltage signal via probe leads and 4mm "banana" plugs to a standard DMM. The voltage is proportional to the measured signal, typically 1mv represents 1 amp.
Clamp meters can measure hundreds or thousands of amps.
To use a current clamp, you simply clamp over a single cable. In the case of a power cord or multicore cable, you need to isolate one of the cores. If two cores carrying the same current but in opposite directions are enclosed within the jaws (which would be the situation if you clamp over a power cord), the magnetic fields due to the current flow would cancel out and the reading would be zero.

Fluke 381 True RMS AC/DC clamp meter
Fluke 381 True RMS AC/DC clamp meter | Source

How to Measure Resistance

  1. If the component is on a circuit board or in an appliance, turn off the power
  2. Disconnect one end of the component if it's in a circuit. This may involve pulling off spade leads or desoldering. This is important as there may be other resistors or other components having resistance, in parallel with the component being measured.
  3. Connect the probes as shown in the photo below.
  4. Turn the dial to the lowest Ohm or Ω range. This is likely to be the 200 ohm range or similar.
  5. Place a probe tip at each end of the component being measured.
  6. If the display indicates "I", this means that resistance is greater than can be displayed on the range setting you have selected, so you must turn the dial to the next highest range. Repeat this until a value is displayed on the LCD.

Connecting Probe Leads to Measure Resistance

Leads setup to measure resistance
Leads setup to measure resistance | Source
Check resistance across switch contacts
Check resistance across switch contacts | Source

How to Check Continuity and Fuses

A multimeter is useful for checking breaks in flexes of appliances, blown filaments in bulbs and blown fuses, and tracing paths/tracks on PCBs

  1. Turn the selecting dial on the meter to the continuity range. This is often indicated by a symbol which looks like a series of arcs of a circle (See the photo showing symbols used on meters above).
  2. Connect the probe leads to the meter as shown in the photo below.
  3. If a conductor on a circuit board/ a wire in an appliance needs to be checked, make sure the device is powered down.
  4. Place the tip of a probe at each end of the conductor or fuse which needs to be checked.
  5. If resistance is less than about 30 ohms, the meter will indicate this by by a beep tone or buzzing sound. The resistance is usually indicated on the display also. If there is break in continuity in the device being tested, an overload indication, usually the digit "1", will be displayed on the meter.

Connecting Probe Leads to Check Diodes or Continuity

Leads setup to check diodes or continuity
Leads setup to check diodes or continuity | Source

How to Check Diodes

A multimeter can be used to check whether a diode is short circuited or open circuited. A diode is an electronic one way valve or check valve, which only conducts in one direction. A multimeter when connected to a working diode indicates the voltage across the component.

  1. Turn the dial of the meter to the diode test setting, which is indicated by a triangle with a bar at the end (see the photo showing symbols used on meters above).
  2. Connect the probes as shown above.
  3. Touch the tip of the negative probe to one end of the diode, and the tip of the positive probe to the other end.
  4. When the black probe is in contact with the cathode of the diode (usually indicated by a bar marked on the component) and the red probe makes contact with the anode, the diode conducts, and the meter indicates the voltage. This should be about 0.6 volts for a silicon diode and about 0.2 volts for a Schottky diode. When the probes are reversed, the meter should indicate a "1" because the diode is open circuit and non-conducting.
  5. If the meter reads "1" when the probes are placed either way, the diode is likely to be faulty and open circuit. If the meter indicates a value close to zero, the diode is shorted circuited.
  6. If a component is in circuit, resistances in parallel will affect the reading and the meter may not indicate "1" but a value somewhat less.

How to Measure Wattage and the Power Consumption of an Appliance With a Multimeter

Watts = Volts x Current

So to measure the power in watts of a load/appliance, both the voltage across the load and the current passing through it must be measured. If you have two DMMs, you can measure the voltage and current simultaneously. Alternatively measure the voltage first, and then disconnect the load so that the DMM can be inserted in series to measure current. When any quantity is measured, the measuring device has an influence on the measurement. So the resistance of the meter will reduce current slightly, and give a lower reading than the actual value with the meter not connected.

The safest way to measure the power consumption of an appliance powered from the mains is to use a power adapter. These devices plug into a socket and the appliance is then plugged into the adapter which displays information on an LCD. Typical parameters displayed are voltage, current, power, kwh, cost and how long the appliance was turned on (useful for fridges, freezers and air conditioners which cut in and out). You can read more about these gadget in my article here:

Checking Power Consumption of Appliances With an Energy Monitoring Adapter

An alternative way of safely measuring current drawn by an electrical appliance is to make up a test lead using a short piece of power cord with a trailing socket on one end and a mains plug on the other. The inner neutral core of the power cord could be freed and separated from the outer sheath, and current measured with a clamp meter or probe (Don't remove the insulation!) . Another way is to cut the neutral core, add 4mm banana plugs to each of the cut ends and plug these into the meter. Only make connections and adjust range on the meter with the power off!

Measuring watts = volts x amps
Measuring watts = volts x amps | Source
Power adapter. (Also known as an energy monitor/power tracker)
Power adapter. (Also known as an energy monitor/power tracker) | Source

How to Check Peak Voltages - Using a DVA Adapter

Some meters have a button which sets the meter to read max and min RMS voltages and/or peak voltages (of the waveform). An alternative is to use a DVA or Direct Voltage Adapter. Some components such as CDI (Capacitor Discharge Ignition) modules on vehicles, boats and small engines produce pulses which vary in frequency and can be short duration. A DVA adapter will sample and hold the peak value of the waveform and output it as a DC voltage so the component can be checked to see whether it's producing the correct voltage level. A DVA adapter typically has two probe leads as input for measuring voltage and either two output leads with banana plugs or a connector with fixed plugs attached for plugging into a meter with standard spaced sockets. The meter is set to a high DC voltage range (e.g. 1000 volts DC) and the adapter typically outputs 1 volt DC per 1 volt AC input.

Important information for anyone using a DVA to check ignition circuits!

In this application, the adapter is used for measuring the primary voltage of a stator/ignition coil, not the secondary voltage, which could be about 10,000 volts or more.

Fluke also manufacture meters that can capture the peak level of short transients e.g. - The Fluke-87-5, Fluke-287 and Fluke-289 models.

True RMS Multimeters

The voltage supply to your home is AC, and voltage and current vary in polarity over time. The waveform is sinusoidal as in the diagram below and the change of direction of current is known as the frequency and measured in Hertz (Hz). This frequency can be 50 or 60 Hz, depending on which country you live in. The RMS voltage of an AC waveform is the effective voltage and similar to the average voltage. If the peak voltage is Vpeak, then the RMS voltage for a sinusoidal voltage is Vpeak / √2 (approx 0.707 times the peak voltage). The power in a circuit is the RMS voltage multiplied by the RMS current flowing in a load. The voltage normally printed on appliances is the RMS voltage even though this is not usually stated.
A basic multimeter will indicate RMS voltages for sinusoidal voltage waveforms. The supply to our homes is sinusoidal so this isn't a problem. However if a voltage is non sinusoidal, e.g. a square or triangular wave, then the meter will not indicate the true RMS voltage. True RMS meters however are designed to correctly indicate RMS values for all shaped waveforms.

The AC Supply Feeding Our Homes is a Sine Wave

RMS and peak voltages of an AC sine waveform. Vpp is the peak to peak voltage
RMS and peak voltages of an AC sine waveform. Vpp is the peak to peak voltage | Source

FAQs About Multimeters

How Do You Check Voltage With a Multimeter?

Plug the black probe into COM and the red probe into the socket marked VΩ. Set the range to DC or AC volts and touch the probe tips to the two points between which voltage needs to be measured.

How Do You Check if a Wire is Live With a Multimeter?

For this it's best to stay safe and use a non-contact volt tester or phase tester screwdriver. These will indicate if voltage is e.g > 100 volts. A multimeter can only measure the voltage between live and neutral or live and earth if these conductors/terminals are accessible, which may not always be the case.

How Do You Check Voltage Drop With a Multimeter?

Voltage drop occurs across a resistance or along a power cable. So follow the same procedure as for measuring voltage and measure voltage at the two points of interset and subtract one form the other to measure voltage drop.

Why is Voltage Drop Important?

If voltage drop is excessive, appliances may not work properly. Cable should be sized adequately to minimise voltage drop for the current it needs to carry and the distance over which current travels.

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.

Questions & Answers

  • How do I test and identify faults of three phase system of both control circuit and power circuit for motors?

    Have a look at this document which may help:

  • To be clear, am I correct in my interpretation that if I want to check that there is 230v in my electrical connections in a light fitting that is glowing dimly, I need the lamp in first to complete the circuit, then I check either end of the fitting placing the meter in parallel? Conversely, if I were to use the meter in lieu of the lamp, then this would be in series and the reading would be false or the meter would simply not work?

    If the fitting is wired correctly, it doesn't matter much if the lamp is in place or not as regards measuring the voltage. Yes, you do connect a meter in parallel with a load (i.e. the lamp in your case) to measure voltage. But because a lamp doesn't take much current, it doesn't drop voltage significantly. Now if the load was high powered e.g. a heater, the voltage would drop a few volts. The open circuit voltage of a voltage source is always higher than the output voltage on load because a real voltage source always has internal resistance, plus the connecting wires have resistance also. So if the connecting wires are long or cross-sectional area is small, the voltage drop can be considerable if the wiring is sized inappropriately. If you connect the meter to the fitting without the lamp, it's in parallel with the output terminals on the fitting and because it's set to "volts", no current flows through it (well actually just a little, but microamps because it has such a high resistance). If the meter was set to "amps" it would be like a short circuit and effectively in series with the supply and a fuse would blow. Maybe the concept of parallel and series is a bit confusing. Just remember that when the meter is set to volts, it measures the voltage between two points and when set to amps, it measures the current flowing between the two points.

© 2012 Eugene Brennan


    0 of 8192 characters used
    Post Comment
    • eugbug profile imageAUTHOR

      Eugene Brennan

      6 months ago from Ireland

      A meter has a very high impedance and sensitivity to voltage. Even though the black isn't connected to anything, there is capacitance between the metal probe tip and wire of the black lead and ground. So a minute current can actually flow backwards and forwards through the air as this tiny capacitor charges and discharges as the AC continually changes direction, If you've ever put your hand on a plasma ball, a discharge flows through the ball to the glass at the point where your hand touches it. This is pretty much for the same reason. Look up capacitors on Wikipedia for more info.

    • profile image

      Jay Mengel

      6 months ago

      I am replacing a ceiling fan. In checking the voltages i find i get a reading of 9 - 10 volts when I connect only the red lead of my test meter to the hot wire. The black is not connected to anything. Is there an explanation? If touch the black lead to ground or the common wires I get 120 volts (+/- a couple)

    • eugbug profile imageAUTHOR

      Eugene Brennan

      10 months ago from Ireland

      Thanks Michael for the feedback!

      If you have any questions about multimeters or electricity, just ask.

    • profile image

      Michael Kingston

      10 months ago

      Having just enrolled on a auto electrical course at Cardiff and the Vale College, Cardiff and no nothing about vehicle electrics. I find your article about multimeters fascinating. Thank you!

    • eugbug profile imageAUTHOR

      Eugene Brennan

      10 months ago from Ireland

      Hi Mark, it possibly could. Sometimes adapters aren't regulated and 12 volts output means the voltage it gives on full load, but this can rise when off load. A regulated adapter gives a constant voltage, independent of load. If it's an AC adapter, it's probably just a transformer, without any regulating electronics. 17.4 volts sounds very high though for a 12 volt adapter off load, a volt or two would be normal.

      Does the microscope definitely require AC, rather than DC? Without being able to load the adapter with a current equivalent to what the microscope takes and see if voltage falls, I can't say whether or not it would cause damage.

    • profile image


      10 months ago

      I just bought a 12v (written on on it) AC adapter. I measured the voltage at the tip of it with a Fluke meter. I am reading 17.4v, is this normal? My device (a LED illuminated microscope) requires 12v. Will I damage the LED bulb if I use this AC adapter?

    • eugbug profile imageAUTHOR

      Eugene Brennan

      12 months ago from Ireland

      Only if they're connected to a high voltage source. Above about 50 V, a voltage source will begin to produce a sensation. However the intensity and actual threshold level depends on several factors such as location on the body of the point of contact, nature of the skin e.g. smooth or calloused, whether skin is dry or moist etc. An ohmmeter or multimeter set to the ohms range, outputs a voltage and uses this to feed a current through a connected resistance in order to calculate its value (R = V / I). However this voltage is relatively low. A Megger type insulation tester as used for checking insulation quality in electrical installations however, generates much higher voltages which will shock.

    • profile image

      Mike gordon

      12 months ago

      Can the probes shock me if I touch them

    • eugbug profile imageAUTHOR

      Eugene Brennan

      14 months ago from Ireland

      Hi Pranjal. Yes you can measure AC current if the meter has an AC current range. The procedure is the same as for measuring DC current described above. If measuring mains currents, precautions must be taken, including but not limited to the following:

      1 Check that probes are not damaged with any exposed conductors

      2 Set the meter to the appropriate range and make connections with power turned off

      3 If you estimate that the current will be higher than the maximum range, use the high current setting and use the high current (e.g. 10A or 20A) socket

      4 If you don't know the current, but think it may be greater than the value of the highest current range, you will need to use a clamp meter. The high current range may not be fused.

      5 Use a meter with a CAT rating to suit the conditions of measurement

    • profile image


      14 months ago

      sir can we check the ac current using digital multimeter and without clamp meter if yes then how?

    • profile image


      15 months ago

      very, very useful information; even for a 71 year old novice like myself. Thankyou for all the time you must have invested in this posting.

    • eugbug profile imageAUTHOR

      Eugene Brennan

      16 months ago from Ireland

      I'm not an electrician, but I presume a "Megger" type instrument would be required for testing insulation plus another for testing earth loop impedance and a third for testing RCDs. Alternatively a multifunction tester to all tests could be used. A multimeter would be of limited use.

    • MGREEN201 profile image


      16 months ago

      Thanks Eugene. I have some of them already. Can you suggest any decent journal articles or published papers .. I realy need to use excessive literature review for my work and would appreciate any suggested sources

    • MGREEN201 profile image


      16 months ago

      I had an electrician who used a multi meter to carry out an EICR ( PERIODIC TESTING ) USING A MULTI METER. I WAS SUPRISED AS I DIDN'T THINK IT WAS POSSIBLE HE ASSURED ME IT WAS. NUT QUESTION IS .IS IT POSSIBLE TO DO A FULL EICR ( PERIODIC TEST ) USING A MULTI METER.i know for a fact that he couldn't get a tripping time for the rcd

    • profile image


      16 months ago

      Nice information thanks

    • profile image

      Fredrick Mtonga

      16 months ago

      thank you very much, the notes are brief I have learned a lot. ..

    • eugbug profile imageAUTHOR

      Eugene Brennan

      17 months ago from Ireland

      ABF, can you explain this a bit clearer?

    • profile image


      17 months ago

      when we measure the current between two source is not applicable. why?

    • profile image

      mintesenot debebe

      18 months ago

      I have no words that's nice and brilliant note I wanna say thank you.

    • profile image


      19 months ago

      very needed -thanks

    • eugbug profile imageAUTHOR

      Eugene Brennan

      20 months ago from Ireland

      Important! - For anyone using a DVA adapter mentioned below. These adapters are for measuring the primary voltage of a stator/ignition coil, not the secondary voltage, which could be about 10,000 volts.

      Fluke also manufacture meters that can capture the peak level of short transients e.g. - The Fluke-87-5, Fluke-287 and Fluke-289

    • eugbug profile imageAUTHOR

      Eugene Brennan

      23 months ago from Ireland

      Hi Jabba,

      The meter is practically a short circuit when the the leads are connected to measure current. If you connect it to a voltage source, it will blow the fuse in the meter. The high current range (10A/20A range) may not be fused on a cheap meter, so the meter will likely be destroyed if the voltage source can potentially supply a large current (the mains or a battery).

      Does this answer your question?

    • profile image


      23 months ago

      What is the consequence when testing (current) A and the probes are connected to (voltage) V?

    • profile image

      Loves chowri

      2 years ago

      When you say the probe is in open air, are you holding it, or is it resting on a surface?....

    • profile image


      2 years ago

      How we measure the laptop voltage regulator

    • eugbug profile imageAUTHOR

      Eugene Brennan

      2 years ago from Ireland

      Hi J,

      First check the meter reads 0 volts with the probes touched together to confirm there isn't a fault causing it to display an offset voltage.

      When you say the probe is in open air, are you holding it, or is it resting on a surface?

      A digital multimeter has a high impedance, typically 10 megaohms. When one probe is contacting a 220 volts supply and the other end is in free air, you effectively have a potential divider circuit. A potential divider (Google it for more details) consists of a number of resistors connected in series. When the divider is connected to a voltage supply, a reduced voltage is available at the junction between the resistors (an example is the volume control on a radio). In the most simplest of examples, two resistors of equal value will give half the input voltage at the junction. In your case, the meter forms one part of the potential divider. The other part consists of the resistance from probe through the air to ground (practically infinite), the resistance from the probe through your hand to ground (could be hundreds of megaohms if there is high humidity) and the reactance of the probe to ground (due to capacitance). The latter three are in parallel.

    • profile image

      J. Karthikeyan

      2 years ago

      Digital multimeter two probes. One probe places in phase 230VAC, another probe placed in open air. But meter reading shows 30V. Meter reading is correct? Pls explain.

    • profile image


      2 years ago

      Verry informative information was a bit stale now remember many thanks kind regards Don

    • profile image

      Rochy/Scientist Sandy.

      2 years ago

      Thank you very much for such helpful information, I'm passionate with electronics and inventing some cool devices, and my aim is to make free energy/electricity, so my problem is that I don't know how do we determine voltage a diode can handle like 1N4008 or 1N540 and Voltage regulator and transistor, my question is how do we determine their voltage rating because some of them are not even written or they're faded and where and in which circumstances do we use suppression capacitor, I'd like it if u poke me on my email when u get chance to answer my question and where to follow my answer thank you for your knowledge.

    • eugbug profile imageAUTHOR

      Eugene Brennan

      2 years ago from Ireland

      You can use a potential divider circuit to measure high voltages with a low voltage range meter. In fact this is how the internal circuitry in a meter reduces voltage for the various ranges. However the effort required isn't really worth it. You would also have to build everything into a box so that there are no wires/terminals/components exposed which could cause shock. You can buy a multimeter for about $10 from Dealextreme or other similar gadget suppliers which will measure voltage, current and resistance.

    • profile image


      2 years ago

      How to use a low range voltmeter for high voltages

    • eugbug profile imageAUTHOR

      Eugene Brennan

      2 years ago from Ireland

      Hi Pascal,

      This won't damage the meter (assuming the voltage is less than the rating at the input sockets, typically 600 volts)

      An AC voltage is in effect DC for each half of a cycle, so DC is being applied to the inputs anyway.

      Remember when you are making a measurement with a meter to set the range first before you connect the probes to the voltage under test.

      When measuring current, a meter usually has two current sockets. The lower current socket is usually fused, but the higher current socket may or may not be fused. If you estimate the current being measured will be higher than the value indicated on the lower current socket, connect the probe to the higher current socket, otherwise you'll nd up blowing a fuse.

      Hope this helps!

    • profile image


      2 years ago

      hi I have a question suppose that I want to measure a DC voltage and I mistaken I point the rotary to AC . what will I do?

    • eugbug profile imageAUTHOR

      Eugene Brennan

      4 years ago from Ireland

      Hi "lost",

      by test leads being damaged, I mean any insulation scuffed, peeled back or cut to the extent that the inner copper cores are exposed and liable to be touched. Also insulation can crack, and leads pull out from the probe or plug end of the test lead, again exposing the conductor. I think I have a damaged set of leads, so I'll upload a photo.

      I'll add explanations with graphics of serial and parallel connections. Let me know if anything else needs explaining.

    • profile image


      4 years ago

      Very Good info , can you explain what some of the things are for people like myself that are Very Very unfamiliar with the terminology ? In the safety first alone I was lost on leads not being damaged , (maybe a picture glossary of lingo) or what a series or parallel is etc. love this hub ,just from my lack of certain words or terms and their meaning I was lost from the start. Thank You


    This website uses cookies

    As a user in the EEA, your approval is needed on a few things. To provide a better website experience, uses cookies (and other similar technologies) and may collect, process, and share personal data. Please choose which areas of our service you consent to our doing so.

    For more information on managing or withdrawing consents and how we handle data, visit our Privacy Policy at:

    Show Details
    HubPages Device IDThis is used to identify particular browsers or devices when the access the service, and is used for security reasons.
    LoginThis is necessary to sign in to the HubPages Service.
    Google RecaptchaThis is used to prevent bots and spam. (Privacy Policy)
    AkismetThis is used to detect comment spam. (Privacy Policy)
    HubPages Google AnalyticsThis is used to provide data on traffic to our website, all personally identifyable data is anonymized. (Privacy Policy)
    HubPages Traffic PixelThis is used to collect data on traffic to articles and other pages on our site. Unless you are signed in to a HubPages account, all personally identifiable information is anonymized.
    Amazon Web ServicesThis is a cloud services platform that we used to host our service. (Privacy Policy)
    CloudflareThis is a cloud CDN service that we use to efficiently deliver files required for our service to operate such as javascript, cascading style sheets, images, and videos. (Privacy Policy)
    Google Hosted LibrariesJavascript software libraries such as jQuery are loaded at endpoints on the or domains, for performance and efficiency reasons. (Privacy Policy)
    Google Custom SearchThis is feature allows you to search the site. (Privacy Policy)
    Google MapsSome articles have Google Maps embedded in them. (Privacy Policy)
    Google ChartsThis is used to display charts and graphs on articles and the author center. (Privacy Policy)
    Google AdSense Host APIThis service allows you to sign up for or associate a Google AdSense account with HubPages, so that you can earn money from ads on your articles. No data is shared unless you engage with this feature. (Privacy Policy)
    Google YouTubeSome articles have YouTube videos embedded in them. (Privacy Policy)
    VimeoSome articles have Vimeo videos embedded in them. (Privacy Policy)
    PaypalThis is used for a registered author who enrolls in the HubPages Earnings program and requests to be paid via PayPal. No data is shared with Paypal unless you engage with this feature. (Privacy Policy)
    Facebook LoginYou can use this to streamline signing up for, or signing in to your Hubpages account. No data is shared with Facebook unless you engage with this feature. (Privacy Policy)
    MavenThis supports the Maven widget and search functionality. (Privacy Policy)
    Google AdSenseThis is an ad network. (Privacy Policy)
    Google DoubleClickGoogle provides ad serving technology and runs an ad network. (Privacy Policy)
    Index ExchangeThis is an ad network. (Privacy Policy)
    SovrnThis is an ad network. (Privacy Policy)
    Facebook AdsThis is an ad network. (Privacy Policy)
    Amazon Unified Ad MarketplaceThis is an ad network. (Privacy Policy)
    AppNexusThis is an ad network. (Privacy Policy)
    OpenxThis is an ad network. (Privacy Policy)
    Rubicon ProjectThis is an ad network. (Privacy Policy)
    TripleLiftThis is an ad network. (Privacy Policy)
    Say MediaWe partner with Say Media to deliver ad campaigns on our sites. (Privacy Policy)
    Remarketing PixelsWe may use remarketing pixels from advertising networks such as Google AdWords, Bing Ads, and Facebook in order to advertise the HubPages Service to people that have visited our sites.
    Conversion Tracking PixelsWe may use conversion tracking pixels from advertising networks such as Google AdWords, Bing Ads, and Facebook in order to identify when an advertisement has successfully resulted in the desired action, such as signing up for the HubPages Service or publishing an article on the HubPages Service.
    Author Google AnalyticsThis is used to provide traffic data and reports to the authors of articles on the HubPages Service. (Privacy Policy)
    ComscoreComScore is a media measurement and analytics company providing marketing data and analytics to enterprises, media and advertising agencies, and publishers. Non-consent will result in ComScore only processing obfuscated personal data. (Privacy Policy)
    Amazon Tracking PixelSome articles display amazon products as part of the Amazon Affiliate program, this pixel provides traffic statistics for those products (Privacy Policy)
    ClickscoThis is a data management platform studying reader behavior (Privacy Policy)
