How (Not) to Repair Your Wheelbarrow

  • Author:
  • Updated date:
Learn how (and how not to) repair your own wheelbarrow.

Learn how (and how not to) repair your own wheelbarrow.

Wheelbarrow Repair Guide

Do you have a wheelbarrow with a rusty bucket or crumbling handles? We did—it had spent too much time outside, assaulted by rain and sun. Did it make sense to replace it? Or could it be repaired?

Judging by the selection on offer at the local big box stores, wheelbarrow technology hasn't changed much in the last couple of decades. Several models similar to our old one were there to be seen: sheet metal "bucket," metal frame, wooden handles. They were retailing for prices between $50 and $130 or so—definitely enough to inspire some repair efforts.

This article shows what the project looked like for me.

The finished result, in service again.

The finished result, in service again.

First, let’s consider cost. Of course, it depends on what is wrong with your wheelbarrow. But the biggest vulnerability on these barrows is the handles. They are not well-finished, which means they are not well-protected from weathering. Assuming that your wheelbarrow’s handles, like mine, are the main issue, then the main cost will be that of the wood you need to fashion new handles.

Ash and hickory are the woods of choice but are prohibitively expensive unless you have an ‘in’ of some sort—your own woodlot, perhaps?

But oak is a reasonable substitute for this purpose. I used two 10-foot 1 x 2 inch pieces laminated together to build my replacement handles. The cost was $20. I also replaced almost all the old hardware, which cost another $10 or so. I was fortunate enough to have most of a quart of rust paint and so was spared that expense. But if you need to buy paint, too, a quart of rust paint will cost less than $10.

The process was fairly straightforward: first, dismantle the wheelbarrow. The old handles will be used as templates for the new ones and can best be measured separately!

But, unless your wheelbarrow is exactly like mine, I recommend that you photograph your old one carefully to document how it was assembled. I neglected this step, naively imagining that it would be trivial to reassemble it again when the time came. But that turned out not to be true, resulting in quite a lot of unnecessary head-scratching! (More on that later.)

Update—Prefab Handles

On an unrelated visit to my local Big Box Home Store (Inc.), I was somewhat chagrined to find that they now sell wood wheelbarrow handles for around $13 apiece.

I could not identify the wood, but it was considerably less dense than my laminated oak handles and will probably be less rugged and durable. It is certainly not as attractive!

But just as certainly, the hassle and time factors are much more favorable—all you have to do is drill holes for the hardware. And they are considerably cheaper, which surely makes them worth considering as an option for your wheelbarrow "R & R" project.

Construction began with the new handles. The 10-foot 1 x 2s were cut in half to match the (approximate) 5-foot length of the original handles. As shown in the photos, the resulting pieces were ‘buttered’ with wood glue using a putty knife and then clamped and screwed together.

If you are used to working with soft woods like pine, be aware that pilot holes and countersink holes need to be more carefully made when working in oak. Oak is hard enough that an undersized pilot hole can result in you breaking a screw as you try to tighten it. Nor will a screw deepen an undersized countersink hole in oak.

When the glue has finished setting, shape the ends of the handles. I did this with a table saw set to a 45-degree angle, followed by smoothing with a small surform plane and sandpaper. As always, exercise extreme care in using a table saw.

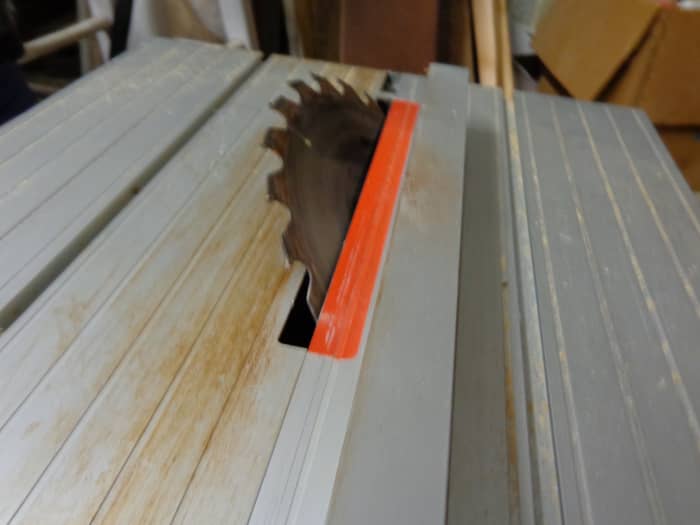

Table saw set to 45-degree angle.  The edges of each handle were trimmed for several inches back to begin shaping the grips.

Table saw set to 45-degree angle. The edges of each handle were trimmed for several inches back to begin shaping the grips.

Holes for hardware should be drilled according to their placement in the original handles. If you don’t have a drill press, it is a good idea to drill from both sides of the work piece; otherwise, holes are apt to "wander" away from their correct location. It is surprisingly hard to drill a true 90-degree hole by hand.

Once the piece is completely shaped, it can be sanded and varnished. I used polyurethane and applied multiple coats to create as durable a finish as possible.

Section of finished handle.  Lamination is visible, as is the gloss of the polyurethane finish.

Section of finished handle. Lamination is visible, as is the gloss of the polyurethane finish.

Many wheelbarrows, like mine, require a set of "wedges"—wooden pieces resting upon the handles and supporting the "bucket." I cut mine from a scrap piece of pressure-treated 2 x 2 inch lumber using the table saw. To cut the correct angle, I tacked the work piece to one of the old "wedges," taking extreme care that the metal not fall in the line of the saw cut. That would be dangerous indeed!

A single rip cut served to define the angle cut for both wedges; they merely needed to be trimmed to length.

Meanwhile, the "bucket" of the wheelbarrow, as well as the other assorted metal pieces, must be cleaned up and painted. I pressure-washed them, dried them, and scrubbed them with steel wool as long and as vigorously as I could, and wiped them down. Then I painted them with multiple coats of rust paint.

Update—Prefab Handles

Reader "Larry" reports that he was able to find pre-fab wedges that worked for him online at the Ace Hardware site for just $5. So it may be worthwhile to do a little searching to see if that's an option for you.

The problem and (part of) the solution.

The problem and (part of) the solution.

When all the finishing is complete, and everything is thoroughly dry, it’s time to assemble the pieces. This is harder than I had expected because apparently, everything is meant to be under stress when correctly assembled. That is, the metal pieces must be bent slightly into their places; they do not fit "passively" into place. That makes it harder to discern just how they are meant to fit together. But if you have documented the original appearance, you will be saved some puzzlement.

Assembly:  connecting the handles via the front bracket.

Assembly: connecting the handles via the front bracket.

Begin by connecting the handles to the front bracket. Use the old handles to accurately locate the holes for the bolts, as suggested by the photo above.

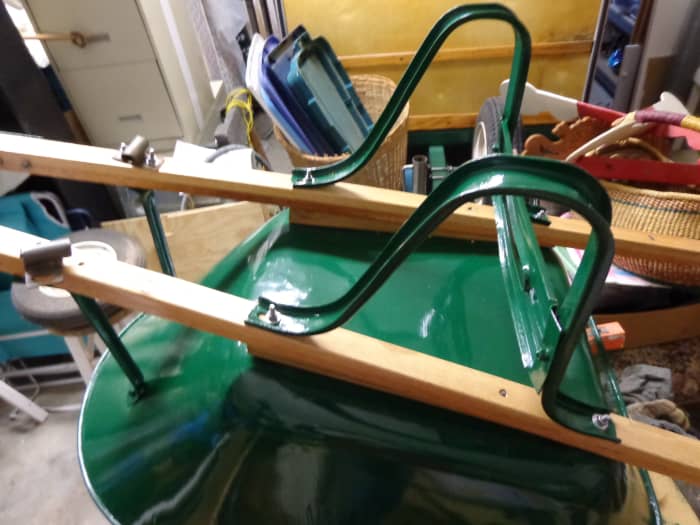

Legs and wedges assembled to handles and to bucket, as well as front braces.  Note that front braces and legs are under stress in their correct positions.  Use the old handles to accurately pre-drill bolt holes, then align metal parts accordingly.

Legs and wedges assembled to handles and to bucket, as well as front braces. Note that front braces and legs are under stress in their correct positions. Use the old handles to accurately pre-drill bolt holes, then align metal parts accordingly.

Assembling the legs and the braces is the most challenging, as the parts don't align naturally. But if your holes are pre-drilled correctly and if you have documented the assembly, you shouldn't have too much trouble.

It’s important to get the wheel brackets reasonably straight since the wheelbarrow won’t track correctly otherwise.

As the photos above suggest, this can take some "fiddling."

All in all, this project was somewhat time-consuming due to all the finishing involved: there were multiple coats of paint to the bucket and other metal parts and multiple coats of poly to the handles. Each had to be applied, which was a relatively quick process, but then had to dry, which was not.

And of course, there was lots and lots of surface preparation first: time with a sander and steel wool.

Even the assembly took longer than expected due to my failure to document the assembly adequately. But you won't make that mistake!

But the result was satisfying: a wheelbarrow that probably looks better than it did when new and that should be good for many more years of service.

Better than new?

Better than new?

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.


Doc Snow (author) from Camden, South Carolina on April 28, 2019:

You are right, Larry. If you have to pay yourself for your time in the accounting, few DIY projects really make sense on pure economic grounds.

But it may make sense in cash terms, as your example shows, and if you enjoy the process and (as you say) have the time, why not?

Larry on April 28, 2019:

Thanks Doc. Finishing my rebuild today with 3 coats of spray spar varnish on the handles and wedges. An easy fix for me, but wanted to share that pretty much the same wheelbarrow goes for about $55 bucks at HD. For the rebuild, between the premade handles, wedges, buying a few new bolts, etc. my cost ran about $45. Its always worth saving $10 for us retired guys, but not everyone has the time. Just some thoughts.

Doc Snow (author) from Camden, South Carolina on April 28, 2019:

Nice, Larry--thanks for the tip! I'm going to add that information as an update.

By the way, my barrow is holding up nicely, several years later--though it's time, I'd say, to renew the poly and paint.

Larry on April 27, 2019:

Thanks for the validating content. Rebuilding mine the same way. I was going to cut my own wedges too until I found them for about $5 each online at Ace Hardware.

Doc Snow (author) from Camden, South Carolina on January 14, 2019:

Jaime, thanks for those hints. Sounds like a very sturdy structure.

I don't think they apply to the design I have, though, as there's no metal-to-metal contact between legs and bucket; the handles intervene. And the axle bearings are sealed, so no need to grease.

But, of course, different designs call for different measures. Thanks again for sharing your tips!

Doc Snow (author) from Camden, South Carolina on January 14, 2019:

Gosh, don't know how I missed your comment for so long, Eric! My apologies for the non-reply!

But the idea seems sound to me. The poly on mine--which is outside a lot, and only semi-sheltered at best--now needs re-doing. (It's peeling, just as you forecast.) Otherwise, the barrow is holding up well, all these years later.

If you've done it (and if you see this reply) how did it turn out?

Jaime Chapman on January 12, 2019:

be sure to grease that axle

Jaime Chapman on January 12, 2019:

I repair many wheelbarrows .

I weld the legs together with 4 -1inch long welds.At back by crossmember.

Than I also weld carriagebolts to pan. this seems to be a weak spot.

It also makes assembly much easier when parts arent falling out

These make for a sturdy wheelbarrow that will last!

Eugene Brennan from Ireland on May 05, 2017:

My wheel barrow is due a new bottom after major wear and tear and corrosion from transporting concrete during construction of the garden shed last summer.

Eric, I think my wheel barrow was treated with a bitumen type coating when it was made in the early 70s. This would probably be more durable than paint.

Eric Bosell on May 05, 2017:

I'm embarking on the very same project! Complete disassembly, new fasteners, and refinishing. But I plan to reuse the handles, which I think are oak or ash. But instead of applying polyurethane, I was thinking of treating them with a high quality oil-based deck stain instead. Seems like that would afford similar protection against moisture (the wheelbarrow sits out in the Pacific Northwest rain year round), but there would be no peeling to worry about -- just the occasional scraping off of moss and restaining. What do you think?

Doc Snow (author) from Camden, South Carolina on October 31, 2016:

John, thanks for the link. Don't need it myself, of course, but it may be helpful to readers here who decide not to take on the repair, or who wish to consider whether Old Faithful is really the best barrow for their needs.

Doc Snow (author) from Camden, South Carolina on January 21, 2015:

"...100 year old knife…" Love it!

Thanks for the thought, the comment and the appreciation!

The paint job is looking a little--well, OK, a lot--less fresh after 21 months and two seasons, a lot of them spent outside in all weathers. But I probably won't really need to redo it for a bit yet.

And, boy, those handles still look pretty great, I'm glad to report!

Eugene Brennan from Ireland on January 21, 2015:

My wheel barrow is like the proverbial 100 year old knife which has had 3 new handles and 2 new blades! The bottom has been patched several times using sheet metal from old washing machines. The "undercarriage" had to have some new support bars welded onto it also.

We live in a throw away society, and it's always better to repair and re-use if possible as well as do the more trendy recycling thing.

Voted up and interesting!

(Nice paint job BTW!)

Doc Snow (author) from Camden, South Carolina on October 19, 2014:

Thanks for checking in, Ron!

Ronald E Franklin from Mechanicsburg, PA on October 18, 2014:

I've got a wheelbarrow that has problems ranging from rust to a leaky tire. Yet it still works for us. I'm glad to see this how-to. Maybe I'll even do this project someday.

Doc Snow (author) from Camden, South Carolina on April 11, 2013:

Is this a project you'd take on? Or maybe you already did?

Share your thoughts and experiences!
