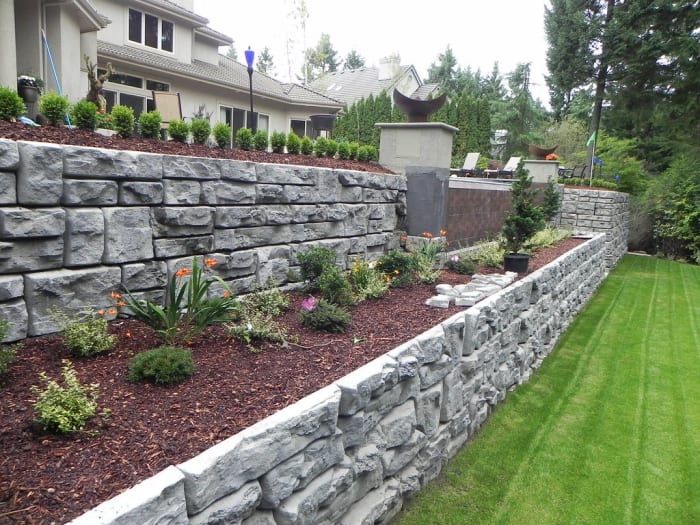

How to Build a Dry-Stack Stone Retaining Wall the Right Way
As a landscaper and contractor who has built stone creations my whole life (think hundreds of thousands of square feet of stonework), I've handled over a million pounds of stone (so far), and I have found that even some of the most educated advice on how to build a stone wall is not always accurate. In this article, I'll share my secrets to building a dry-stack stone retaining wall that will last a lifetime and fit in perfectly with your landscape and home design.
Dry-Stack or Concrete?
There are two common methods of building retaining walls: one with concrete and mortar, and one without (dry-stacking). With concrete, less time is spent choosing the correct stones to lay without leaving large gaps. Any gaps will be filled with mortar. However, there is less drainage than dry-stacking, and you'll have to buy and mix the mortar yourself. With dry-stacking, more planning is needed, but you'll have better drainage, which eases the pressure on the wall from the backfill.
How to Build a Dry-Stack Retaining Wall
- Plan out the wall's height and base thickness. For every every one foot in height, you'll want to lay the base a foot in from the wall's face.
- Prepare a solid foundation, or base. Dig out a trench of at least 6-10 inches. This firmly plants the base into the ground below, which helps prevent movement over time. It is also important to consider the material that will hold the base layer and whether it will allow enough drainage.
- Lay the stones, starting with the largest stones on the bottom. The bottom layers will bear the weight of the stones above them. Make sure to lay the stones so that they angle in slightly toward the back of the wall. This will help the wall resist the pressure of the backfill (ground soil behind the wall).
- Protect your wall with backing. Completely cover the back side of the wall to prevent soil and other debris from getting into the wall's crevices. Geotextile fabrics are my go-to; they allow water to drain through but prevent larger materials from getting into the wall.
1. Planning Your Build
Figure Out the Ratio of Height to Base Thickness
Survey the area where you want to build the wall and draw out a plan. How high do you want the wall to be? The rule of thumb is that for every foot of height, you want the same amount of thickness in the base. If your wall will be over five feet high, you can most likely get away with keeping a consistent thickness of 4–5 feet—if you are careful of how the stones in the back are placed.
However, if you are going to be building an 8–12-foot high wall, you're going to want to increase the thickness at the the base to at least six or seven feet, keeping it consistent until you reach about half the height of the wall. At that point, you can start tapering in towards the face, ending with a width of 2–3 feet at the top. In all cases, the width at the top of your wall should be around this width—or a little less if you want to do some planting.
Remember that the place you first think of for your retaining wall may not be the only place it can go. Moving a wall out a few feet from a bank may allow you to save material. You can build a shorter wall and keep the same slope, or you can make a more gradual slope by pushing the wall even further out. You can add more soil/gravel behind the wall to fill the gap.
Note: For most DIYers, walls three-feet high and below will be manageable. For greater heights, you may want to call in professionals to ensure the wall is built correctly. You may also need to get city approval for walls above three-feet in height, depending on where you live.
Slope the Wall Towards the Back
To help the wall hold up to the pressure from the backfill, plan to dig out the foundation and lay the stones so that the stones slope towards the back of the wall—at least a two-inch drop for every foot of height.
Draw a Cross-Section of the Wall
When you draw a sideview of your wall, you should see a triangle shape. Ideally, the area of the triangle should be at least the same as, if not bigger than, the area behind it from the back of the base up. This way, the weight of the stones, along with the inward slope, will allow your wall to withstand the pressure of the backfill.
A Second Tier Needs Additional Planning
If you are planning to build a second tier, you should also draw out where your wall faces and backing will end up, as well as how the upper wall's weight will be distributed to the area below it.
For instance, if you have a four-foot wall in the front, and a second wall in the back that is only three feet behind the finished face of the front wall, the entire weight of the second wall will push against the center of the first wall, causing the wall to bow outwards and eventually crumble. This is because the upper wall is spreading its weight over the area below at an angle of 45 degrees from its edges.
2. Preparing the Base for the Wall
Dig the Foundation
Mark the area where your wall's base will be. You'll then want to dig a trench at least six inches to a foot into the ground, making a slight incline towards the bank (2-inch drop for every foot of wall height). This helps make sure the wall will withstand the pressure from the backfill over time. Also make sure the surface is even all along the base. Using a square spade can help with this. For larger projects, a tractor may be necessary. You want the foundation stones to be able to lay flat with no room to wiggle.
Choose the Foundation Material
You'll then want to figure out what sort of material will form the base layer. Depending on the area, you may find either regular ground soil, clay soil, or gravel. You may also choose to dig deeper and fill the foundation up to the desired level with one of these materials. I will discuss these materials in more detail below.
Gravel is best for water drainage—something you'll want in order to prevent the wall from shifting around. if there is nothing to obstruct the draining process. It should not need much done to it other than a good compacting with a vibrating-plate compactor or jumping jack, depending on the size of wall you're planning to build. If there are areas that will obstruct the drainage, take care of them by laying a perforated drain tile from the low spot that water will pool in--even if the spot isn't visible on the surface--sloping downwards away from your future wall to an area where collected water can flow away freely. You won't want to direct drainage from the wall towards your house; steps were taken when your house was built to gather and evacuate water from the edges of your house, so don't compromise what should work. With your gravel base compacted, and potential wet spots taken care of, you're ready to start laying your base rocks.
Clay will not drain internally. It will need to be either sloped away from the face of your wall so it can drain freely, or sloped to the right or left along the face of your wall so that it may drain past one end. Many landscapers install drains under their walls when clay is found, but this creates an area for water to collect under your wall, which is the last thing you want. But if there is no other way to drain the water that simple sloping methods will collect, you can install a drain behind your wall. Put it far enough behind the wall so that your wall will not be resting on the tile, and slope the base very slightly towards the back of your wall to ensure water makes it to the drain and so that the tile you install will direct the water into some area that will never get restricted. Always take steps to prevent sediment from infiltrating your drain (see below).
Earth and other materials are not the most desirable bases on which to build large stone applications, but in some cases they are acceptable:
- if the area to be built on has been undisturbed for many years, has had time to naturally settle, and has an existing slope in front of the area the wall will face;
- if the retaining wall will be very short in height and will not signficantly force down its base;
- or if there is mature lawn under the area where the wall will be placed, which has been there for a at least a few years and slopes away from the face of your wall. A well-structured lawn is great at evacuating surface water.
However, in most other cases, consider taking steps to ensure that your wall will lie on a solid base. If your wall will be higher than around 24", it will apply a lot of force to the base it lies on, which over the first few years of the wall's life will cause unstable ground to absorb the weight more in some areas and less in others. This will cause your wall to shift or sag and lose its structural integrity.
Because of this I suggest de-turfing the area, removing light soil or lawn, and adding "clean" drainage material, that is, material that doesn't include pieces under a given size. Many other landscapers don't use clean materials, meaning they include sand and silt that can cause clogging. I use "3/4 clean" which has only 3/4" pieces.
The problem with material that is not clean is that it creates a false base over your problem area by floating on top of existing materials and sealing them off. Clean material, applied in thin layers and compacted in stages, will be absorbed into the existing materials which lie underneath, adding to their ability to perform as an appropriate base. In most cases when a two inch layer of 3/4" clean material is added to and compacted into an earthy base area, the two inches will easily be driven down into the existing material. Additional 3/4" clean material should then be added and compacted to create at least an additional 2" rise from existing levels in front of the future wall face, to ensure water can evacuate freely.
Do not repeat these practices that I have too often seen:
- Placing a drainage tile under your wall without complete drain preparation; this allows water to pool if even the smallest shift should occur in underlying terrain and move your wall.
- Burying your base stones beneath the future levels of your finished landscape terrain; this will definitely allow water to gather around and under your base stones and move your wall.
In all cases, you should ensure that your wall will be resting on an area that will be sloping in such a way that water can naturally escape. The face of your wall will have at least 18" of stable ground in front of it. Erosion will eat away at areas of the ground in front of your wall should there be a significant slope. If there is a slope of up to 25 to 30 degrees, you should have 18" of area directly in front of your wall sloping no more than about 10 degrees. On any slope of 30 degrees or more, you should have a couple of feet of strong stable ground in front of your wall if you would like it to last any amount of time. You have to keep in mind that the weight of your wall will be forcing down on its base, and not only straight down, but at an angle up to 45 degrees away from your wall's face. You have to be sure that there is sound material in that area in front of the wall to accept the load.
3. Laying Stone
Choosing and placing stones
Your base stones should be your larger stones. They will be bearing the weight of all the other stones above them and behind them. You should also use similarly large stones behind your base, as well as behind the center sections of your wall, to create a stronger wall whose stones are tied into each other. In other words, spread the weight of the stones over each other, so that each one helps hold the others in place.
You do have to make sure, however, that all the stones in your wall are laid level. If one stone is laid sloping down towards another, it will be forced down onto it by all the weight placed above it, compromising the entire structural integrity of your wall above that area. Also, a stone used in the face of the the wall, even if it sits flat and level, should not be used if its top surface slopes down towards the front of the wall. The reason is that the stones placed on top of these sloping stones will eventually slide down off the wall. I have repaired many walls where the previous masons laid just one stone whose top surface sloped down; that mistake brought down a complete section of a wall.
Something similar but not so drastic happens when a stone's top surface slopes too much inwards, towards the back, and other stones are laid on top of it. The top stones will eventually force that wedge-shaped stone outwards, ejecting it from the face of the wall. At best this will leave a hole, and at worst cause the whole wall above the hole to collapse.
The trick to getting a wall to last is to tie the stone together, and make sure each stone goes back at least 10" deep into the wall. This is the minimum, and you should help out by adding strong tie stones behind a short stone. Stones will essentially be placed like bricks, in a pattern that ties them together; they are in contact with each other and each is forced downward by the stones laid above it. So if you happen to come across a long narrow stone that has a beautiful face on the long side, don't use the beautiful face on the face of the wall. Unless this stone is as deep as it is long, it's not worth it. Use it as a "tie rock" instead; display the less-appealing small face on the face of the wall, and let the stone's length reach far back into the wall. Used in this way, this stone will tie into more stones around it and be held in place by more stones above it, and guarantee you a wall that will last many years.
Building to Last
In the Eastern Townships, where I lay wall, many landscapers and stone masons try to save money by laying the longest faces of the stones as facing, to cover more "face footage." When I rebuild these failed attempts at long-lasting walls, I have to bring in more stone to compensate. Knowlton, in Brome Lake, QC, is littered with hundred-year old walls and some dated even further back. My grandfather, his father, and his father's father spent their lives building stone walls, and the one thing that you notice about their walls, is that they lasted and are still around.
When helping out my grandfather one day I observed a true test of his wall's strength, and it wasn't meant to be a test at all. When he laid wall, he would pick up great big stones, about 80 to 140 lbs, sometimes bigger, and drop them onto his laid sections of wall where he wanted them to go. If you can drop a 140- lb stone onto any section of the wall that you're building, and not cause any structural damage or movement in the wall beneath, you're on the right path.
Remember that the stone you are using has to hold back tons of weight from behind it and on top of it. So a wall built out of five-pound rocks probably won't fare too well over the years if it is of any height at all. Many of my customers in the Bromont area can tell you about a mason in their area who thought he could pull that off.
Examples of Dry-Stack Retaining WallsClick thumbnail to view full-size
4. Protecting Your Wall With Backing
Finally, protect your wall. If you've built a strong wall, there is one last thing that can bring it down: water. Water will definitely end up behind your wall. As long as your backing remains clean of gravel and earth, your wall should fare fine; but if water traveling down and through your wall brings sediment into the wall through the backing, it will do two unwanted things.
1. It will cause instability in the ground above your wall as the ground material leaks out through vacant spaces between your wall's stones. This is especially undesirable if you have additional tiers above, as all the preparation you have done to ensure all areas around your wall are sound will be defeated. Your wall may begin moving inwards into the unstable ground, which is better than outwards, but this may shuffle stones in a way that causes the wall to lose strength.
2. In colder climates, the material that gets deposited into the center of your backing will retain moisture, and as this material freezes it will expand, potentially completely destroying all of your hard work. I have seen this way too many times when the local competition, once again trying to save money on material, backs their walls with gravel or dirt. These rarely last a winter without bowing substantially, and quite often simply fall over.
In bad cases, a simple rain can cause a wall to crumble when material behind the wall gets too heavy and pushes out on a wall that has been laid too narrow and with no clean backing.
So that's the problem, here's the solution: geotextile. Geotextile may be composed of different materials in different regions, but whatever it may be, you need a product with which to completely cover the back side of your wall, a product that will allow water to flow through it freely but will not allow any solid materials to pass through. This will keep your wall and its backing clean, free of material that might disturb the masterpiece you've created. And thinking back to your choice of base preparation, you can now see the importance of getting the water out and away from your wall. A substantial amount of water can collect in the area of your new retaining wall, which now forms part of the drainage system of the area.
With this information you can build yourself a great new retaining wall that will last. And remember that a little extra time or money spent the first time around may save you the inconvenience of a needed second attempt.
Natural Stone Retaining WallsClick thumbnail to view full-size
Secrets to Building a Retaining Wall
A retaining wall is a special kind of wall. It has to not only support itself, but actively hold back pressure from the material behind it as well. Here are some of the most important things to remember when you're building a retaining wall.
- Choose high quality stones. The rocks you use, however you use them, have to resist the pressure being applied by the weight behind the wall.
- Build a solid foundation. The weight of the stones will press down on the base material you are building on so that over time, the foundation will shift, compromising the structural integrity of your work. Take the time to build a sturdy, compacted foundation.
- Use shims to prevent other stones from wobbling. As you lay the stone, the stones you place should lay steady and should not wobble. However, stones aren't perfectly shaped, so this is a problem you will encounter often. Use small stone wedges as supports to prevent movement, which will compromise the wall's integrity.
- Make sure there is plenty of drainage. Water collection behind the wall is unacceptable. The increased weight of wet gravel or soil increases the lateral pressure on the wall, increasing the risk of the wall collapsing. This is made worse in areas with frost. As water freezes, it expands, compromising the structural integrity of the wall. Thus, drainage is as important as having a solid foundation.
- Plan carefully when building multi-tiered retaining walls. Before building, make sure to plan out how you will lay each tier to prevent the tiers in the back from adding pressure on the tiers in front.
- Finally, your wall should tie into the landscape design. It should marry well with the design of your house, as well as your lifestyle and personal taste.
