Water Leak Detection in an Irrigation System

Updated on April 06, 2016
watergeek profile image

Susette worked with public water agencies in Southern California for several years directing water conservation teams and water auditors.

Are your water bills too high? Have you replaced your fixtures and appliances with water efficient ones and reduced your use of water to little avail? Or are you already aware that you might have leaks, but don't know where they are? Most people catch indoor leaks pretty quickly, but outdoor leaks can be harder to find, especially with the irrigation system.

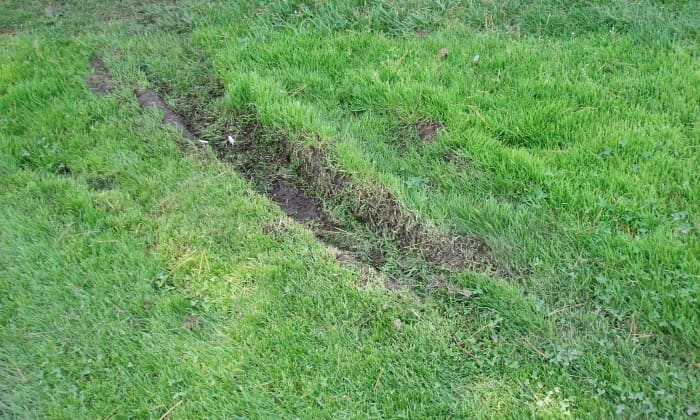

This ground is too soft. The lawnmower should not have been able to make that deep a furrow in this spot. There could be an underground leak here.
This ground is too soft. The lawnmower should not have been able to make that deep a furrow in this spot. There could be an underground leak here. | Source

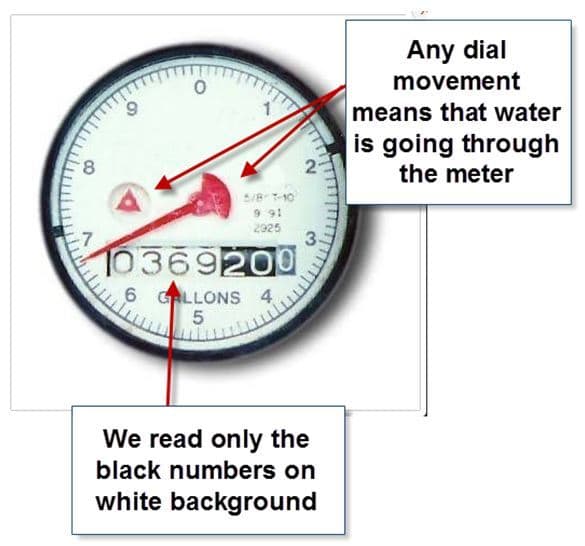

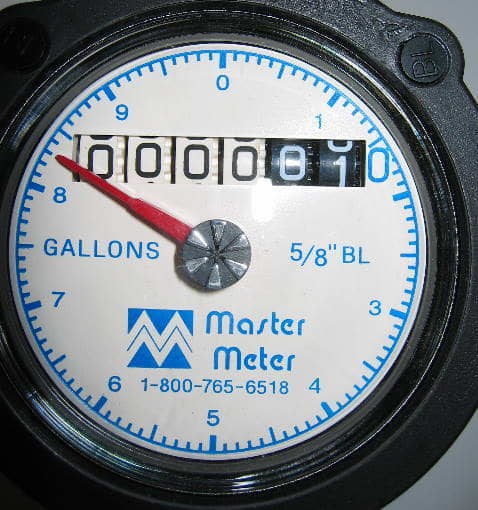

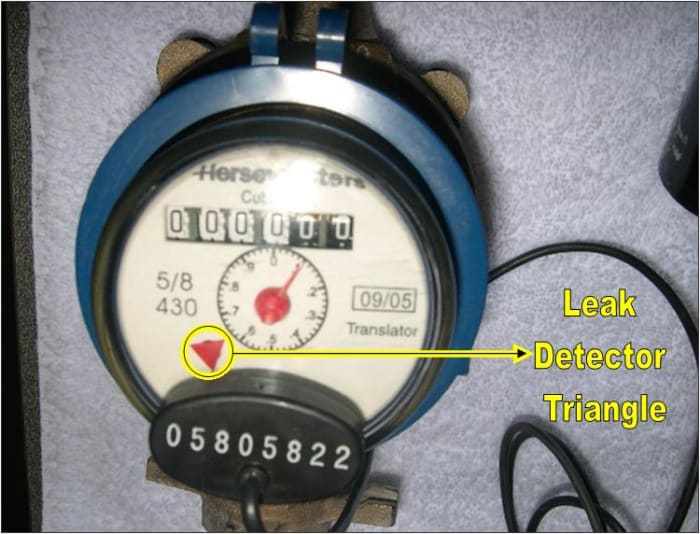

Water Meter - Check your meter to see if the needle moves when all water is turned off. It will be located somewhere between the street and the house, before the plumbing system starts (under a cover in the ground or somewhere next to the house).
Water Meter - Check your meter to see if the needle moves when all water is turned off. It will be located somewhere between the street and the house, before the plumbing system starts (under a cover in the ground or somewhere next to the house). | Source

How do you pay sewage?

Look on your water bill. How are your sewage rates charged?

See results

Dedicated Irrigation Meter

In most homes the majority of water is used outside by the landscape, where overflow feeds into the storm drains. Indoor overflow (and wastes) feed into the sewage system. In houses with large landscapes, it makes sense to measure the two uses separately. Here's why:

  1. If you find a sudden spike in your water bill, you can find out right away, by reading your meters, whether it's from extra use indoors or extra outdoors. You'll have half the area to check.
  2. Since sewage charges are calculated from all meter readings, except dedicated irrigation meters, you may be paying too much. Check to see how sewage is billed. If it's billed by a flat charge, you're ok. If it's billed by the amount used, you may be paying sewage charges you don't owe.
  3. Once a dedicated meter is installed, check the main meter (called a mixed meter) to see how much water you normally use per month for indoor use. That's the only thing sewage should be billed on - for maintaining the public sewage system. Multiply that amount by the sewer rate charged by your water provider. If you have been paying more than that each month, the water provider owes you money.

Some water suppliers will refund the homeowner for prior overcharges, so install the meter first, do your checks, then call them.

Irrigation System Troubleshooting

The following instructions presuppose that you have a dedicated meter. If not, you can still use your house's mixed-use meter to run this check. Just make sure that all water is turned off before starting, inside and out.

Set aside a day to turn off the irrigation system and go through some checks. Find your water shutoff valve - somewhere between the house and street - and turn it off. Give it about twenty minutes for water in the system to stop flowing. Now check your meter. Is it still running? Is the leak indicator triangle or circle showing? If yes, you have a leak.

Now it's time to find out where that leak is. The procedure is to check the irrigation controller, then the valves, then the sprinklers. If you still haven't found it, then you'll check for underground piping leaks, for which you may want to purchase equipment. For the initial checks, all you will need is:

  • Paper and pencil
  • A slew of irrigation flags (small, bright, triangular flags hooked to a 6" thin metal rod that you stick in the ground)
  • Gardening gloves
  • A trowel

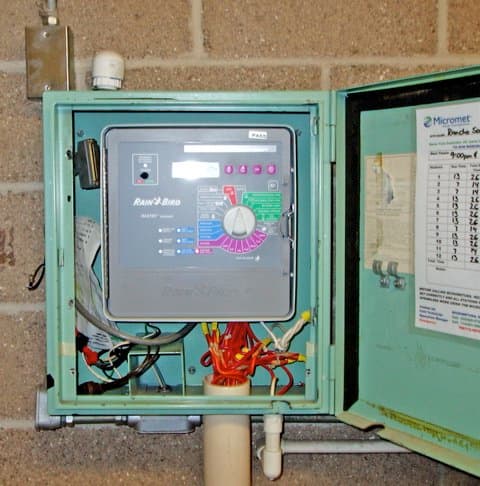

Irrigation Controller - Check the programming of each station to make sure it's what you want.
Irrigation Controller - Check the programming of each station to make sure it's what you want. | Source

Irrigation Controller Check

Controllers, themselves, don't leak water. What they are is an electrical clock that tells the sprinkler valves when to release water through the sprinklers and for how long. What you're checking for when you look at the controller is to make sure that the programming is reasonable. Sometimes, for whatever reason, a sprinkler station (collection of sprinklers under one timer) loses its programming and goes on default, which may be totally the wrong schedule for your area.

My water use audit team once found a small hotel whose controller was out of control, turning sprinklers on for hours at a time on Saturday, when sprinklers were required to be off. We reprogammed it to a more reasonable schedule and taught him how to do it. Subsequent calculations predicted he could save 75% of his water bill from that move alone.

Sprinkler Valves - This set had problems with leaking and electrical connections.
Sprinkler Valves - This set had problems with leaking and electrical connections. | Source

Sprinkler Valves Check

Locate and check each of your valve boxes. Are they flooded or dry? They should be dry. If they're wet, check them carefully for worn parts, loose wiring, or water leaking out between fittings. Post a red flag next to problem boxes and leave the cover off to come back to when this check is finished.

If you are doing the repairs yourself, estimate and purchase the parts you will need and make the repairs all at once, before going on to test the rest of the system. (See the valve repair video in the next section.) If you are not making repairs yourself, you might want to start a list of the problems you find for your landscaper or plumber to take care of.

Sprinkler Stations Check

Once the controller and valves have been tested, it's time to start checking sprinklers. If you have a large landscape, you will need the help of another person - one to stay at or near the controller to turn stations on and off, the other to walk around the sprinklers, as they come on, and take notes. The walker should also be carrying little flags to mark whatever problems they find for later repair.

How to Repair a Leak, Once You've Found It

Turn the stations on one by one. You will be looking for several indications of wasted water:

  • Water geysers - which indicate missing sprayheads.
  • Floods around the base of a sprinkler - grass may need to be cut shorter or a short riser replaced with a taller one. Also could be an old valve that is not shutting off properly. You might want to check the valve that supplies that sprinkler again.
  • Misaligned sprayhead - shoots water into a nearby obstruction or over the sidewalk or parking lot, instead of grass. Technically not a leak, just needs to be realigned.

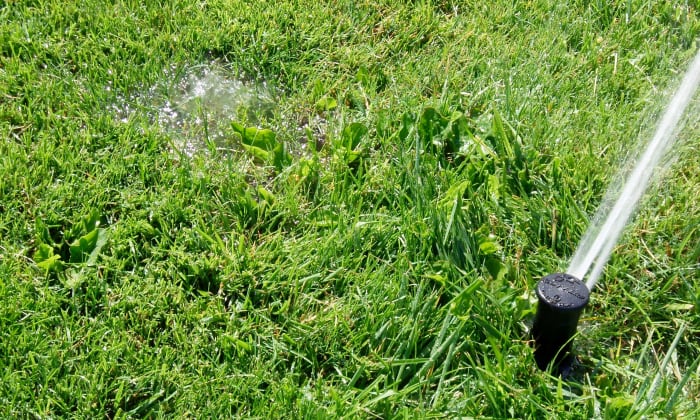

  • Spurts of water at the base of a sprinkler - indicating a broken seal where the nozzle or riser meets the supply line beneath.
  • Water spurts in the space between sprinkler heads - indicating a broken pipe (lateral line) that has already blown out the soil above it.
  • Flooded areas between sprinklers - can indicate a slow, steady leak in a lateral line underground. You will have to dig down to find the actual spot. (See next section.)

All of these problems are commonly found with large landscapes. They need to be checked for and fixed on a regular basis - at least once a month. Routine maintenance, in itself, will save you water.

Once all the stations have been checked and repairs made, you can test the irrigation meter again. In the majority of cases, this is all you will need to do. But if the meter is still showing water being used, even when all water is off, you may have a leak underground. In that case, you can run through the following steps with or without the equipment shown in the next section. Having the equipment makes it easier.

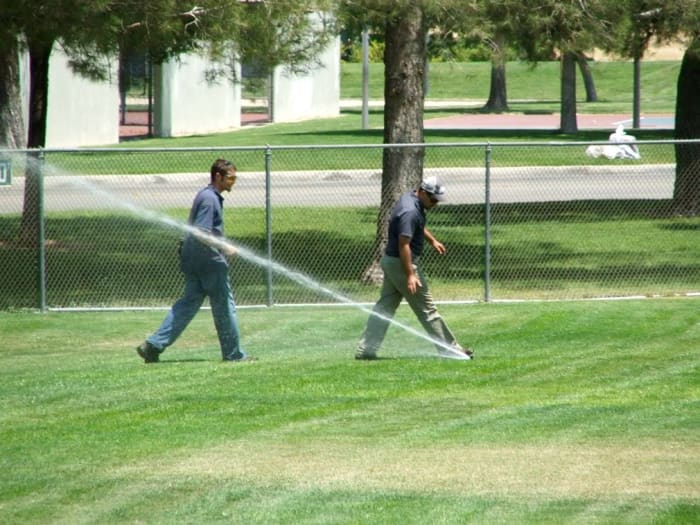

Finding Leaks - Some leaks are pretty easy to find. Others you may have to use equipment to locate.
Finding Leaks - Some leaks are pretty easy to find. Others you may have to use equipment to locate. | Source

Leak Detection Tools

If you insist on finding the underground leak yourself - for the challenge, perspicacity, thrift, or just plain stubbornness - you may want some specialized tools:

  • Water Leak Microphone - This is a rod that you pass over the ground, or probe through it in spots, that magnifies the sound of water rushing through pipes. Once you understand what all the sounds mean, you can follow the water sound to where its intensity increases to find the leak.

  • Leak Noise Logger - The hand-held logger is attached to the microphone probe. It records the intensity of sounds the microphone picks up. If you find it hard to determine in which direction the sound grows louder, look at the digital readout of your logger.

  • Headphones - The purpose of headphones is to close out ambient sound and let you focus on what is being transmitted to you from the leak detection probe.

  • Electro-Acoustic Testing Kit - This kit provides all of the above - a leak detection rod, reader/logger, and headphones to locate underground leaks with plastic or metal pipes. The testing rod detects the sound of water rushing through a pipe and helps you locate the source. It passes what it "hears" through a wire to your hand-held reader and to your headphones. By tracking the intensity of the sound, indicated on the reader, you can home in on the leak.
  • Garden Shovel - You'll use a shovel to dig around the pipe, once you've pinpointed the location.

Underground Plumbing Check

Start with a meter check again. Turn all the water off that is measured by the meter. Wait several minutes, then check the needle. If the needle is still moving, then this time you will need to check for water pressure and the sound of running pipes:

  • Turn the stations on again, one by one, starting with the one closest to the main pipe where water comes into your property - most likely where the meter is.

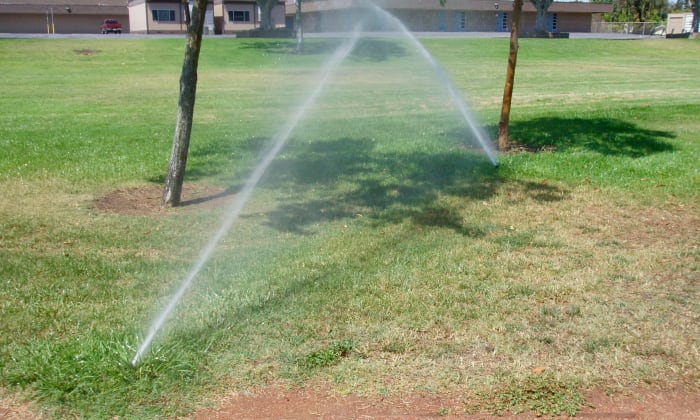

Water Pressure Test - In this case there appear to be no leaks, although there are other problems.
Water Pressure Test - In this case there appear to be no leaks, although there are other problems. | Source
  • Look at the difference in water pressure (the height and size of spray) between the station closest to the main pipe and the one next to it. If there is any difference at all, it should be a barely noticeable lessening as you go further and further back into the property. Test all of your stations this way, comparing the water pressure of one set of sprinklers with those of the station after it.
  • If you have a hidden leak, at some point there will likely be a noticeable drop in water pressure. This means that some water is leaving the pipe in that station before reaching the sprinklers. If the entire station is noticeably lower, the leak is probably fairly close to the beginning of that station. If it doesn't get lower until closer to the end, then that's where the leak is.
  • Sometimes the water gushing through pipes will be loud enough that, if your hearing is good, you can actually hear where the leak is. If not, this is where your equipment comes in. The microphone will pick up and magnify the sound of the water (or the pipe vibrating with it), and the meter in your hand will read the intensity of the sound as you move along the pipe. The most intense reading is likely the location of the leak. Flag it.

Pinpoint the Exact Location

Once you think you have a location identified, turn the water off and take a shovel over to test the ground. These are indications that you are in the right spot:

  • The ground will likely be soggy, so look for that first. Mushrooms growing in that location and nowhere else are another potential indicator.
  • If you don't have equipment, you will probably have to dig down in a few locations to find the exact location of the leak. When you think you're close, manually turn the valve that goes to that area on low. You want dribbles coming out of the sprinkler heads, not a spray. This prevents water and mud from suddenly gushing up into your face when you've uncovered the leak with your shovel.
  • Keep digging around the area, looking for the difference in soil moisture. When you find the leak, fix it. Then test the meter and that area (if you need to) again.

Water Provider Assistance

If you have tested all of your stations and water pressure seems the same, if you have found no floods and no area-specific patches of mushrooms, and you've heard no sounds of water leaking underground, but the meter is still running when all the water is off, then there may be a problem with the meter itself. In that case, you will need to call your water provider.

Tell them all of the tests you've run and ask them to send someone over to check the meter. If it's an old meter, there could be something wrong with it. If it's a newer meter, it could have been improperly installed. If everything is ok when they check, it's time to call a plumber.

Whatever results and whoever pays, you will still have benefitted by each problem discovered and fixed in the process of locating the leak.

Conducting an outdoor water audit will show you many alterations you can make to conserve water. Most of them will make your plants healthier too.
Conducting an outdoor water audit will show you many alterations you can make to conserve water. Most of them will make your plants healthier too. | Source

Water Use Audit

You can benefit still further by calling for a water audit. A water audit will show you what kinds of fixtures can be retrofitted to use less water automatically, and will provide you with a landscape watering schedule tailored to your area and the types of plants you have. Some water suppliers give audits free of charge, so be sure to ask while their technician is still there. Many suppliers also offer a complete indoor-outdoor audit as part of their water conservation program. It wouldn't hurt to ask about that too.
