What Is a GFCI or RCD, and Why Do I Need One?

A GFCI or "Ground-Fault Circuit Interrupter" is an electrical safety device that shuts off power when there's an electrical "leak", increasing your safety by helping to prevent dangerous electrical shocks. A GFCI can typically be plugged into a standard socket outlet.

  • A GFCI is also known as an RCD (Residual Current Device) in the UK or GFI (Ground Fault Interrupter).
  • Historically, these devices were called ELCBs (Earth Leakage Circuit Breakers).

Safety Is Critical When Working With Electricity!

Many of us routinely use electric power tools in the yard and garden for construction and maintenance, typically power drills, saws, hedge trimmers, lawnmowers and strimmers (string trimmers).

However, there's a constant danger of cutting the cord or the tool getting wet during a rain shower—or you could drop it into water. Any of these scenarios can potentially result in shock. A GFCI (also called an RCD) safely shuts off power when this happens.

If you would like to ask me any questions, please leave a comment at the bottom of the article.

Why Do We Get Electric Shocks?

Your home is supplied by an electrical transformer. This device reduces the distribution voltage from thousands of volts to the 120 or 240 volts used in the home. The transformer is earthed (grounded) for safety reasons.

The consequences of this are that if you touch an exposed live power cable, current will flow in a loop through your body and ground back to the transformer. If your hands or an appliance are wet or there's a fault in the appliance and it isn't safely grounded, the same thing can happen.

Most power tools are now doubly insulated with plastic casings or metal casings that are unlikely to become live, but older appliances still pose a risk of shock if there's a fault.

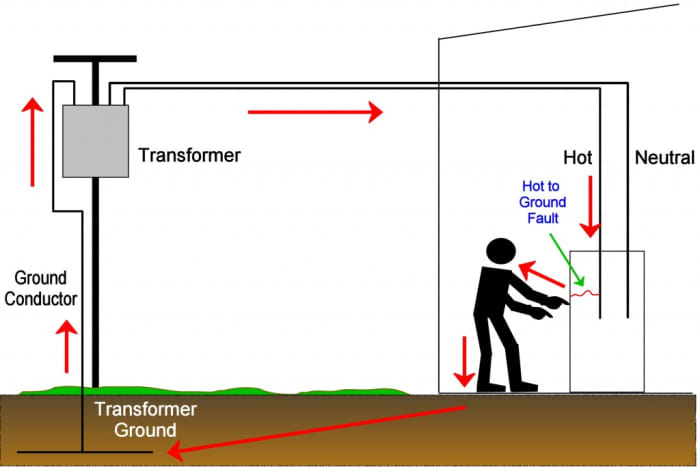

Touching an un-grounded appliance results in current flowing in a loop through the body and ground back to the transformer. (“Hot” is called live in the UK and ground is called “earth”)

Touching an un-grounded appliance results in current flowing in a loop through the body and ground back to the transformer. (“Hot” is called live in the UK and ground is called “earth”)

What Is Meant by "Grounded" or "Earthed?"

If you've ever opened a plug attached to the flex of an appliance, you'll notice that there is a green or green/yellow wire attached to one of the pins. If the appliance has a metal body, this wire is attached to the casing via the power cord.

If any of the live components inside the appliance come loose or break, and touch the casing, this wire draws a surge of current and may blow the fuse (if fitted in the plug,) safely cutting off power. The miniature circuit breaker (MCB) at the consumer unit (or "fusebox") may also trip.

However, the RCD at the consumer unit will almost certainly trip. Any of these scenarios will safely cut off power.

Note: "Ground" and "earth" mean the same thing. The term "ground," however, is more commonly used in the US. For a more detailed discussion, see my article "What Is the Ground (Earth) Wire For?"

What are the Symptoms and Hazards of Electric Shock?

  • An intense sensation in the limb that makes contact.
  • Muscles may contract if the current is large enough. This could cause your hand to grip a power cable tightly so you can't release it.
  • An electric shock can potentially stop your heart from beating, causing death.
  • Much higher voltage shocks (e.g. contacting a distribution line) will cause electrical burns, both of external skin and internal body tissue.
Scroll to Continue

Read More From Dengarden

7 Tips to Prevent Electric Shock

  1. Never handle appliances, electrical plugs or switches with wet hands.
  2. Don't use electrical devices outdoors in wet conditions.
  3. Don't store appliances near water or allow water to get into them. This can easily happen because most appliances aren't waterproof and have cooling slots through which water can pass
  4. Don't wear leather-soled shoes. These can absorb moisture increasing conduction.
  5. Make sure the insulation of the power cords is undamaged with no exposed conductors.
  6. Be conscious at all times where the power flex is so that it can't get cut by the tool. Many tools are now fitted with brightly coloured power cords which are easily seen. However, if the cord is black or dark coloured, you can easily lose "visual contact" with it in low light conditions, especially when it's covered with an accumulation of foliage.
  7. Use a GFCI, also known as an RCD as described in detail below.
Garden equipment can be corded and powered by mains electricity.

Garden equipment can be corded and powered by mains electricity.

Don't tape up damaged flexes.

Don't tape up damaged flexes.

How Does a GFCI Work?

Normally current flows out of a socket outlet to an appliance via the live (known as "hot" in the US) conductor in the power cord, then returns back to the socket via the neutral conductor.

A GFCI monitors this current, and both the current through the live and neutral conductors should be equal. If a live to ground fault occurs, some of the current doesn't return and instead takes a "detour" to the ground. The GFCI detects the imbalance of currents and shuts off power in less than 30 milliseconds.

What Type of Faults Will Shut Off an GFCI?

Typical live to ground faults are:

  • Someone touching the live conductor in a damaged flex. Current flows through their body to the ground. In this scenario, a GFCI may or may not shut off power (it depends on the current which flows) and the person will still experience a shock. However if the current exceeds 30ma, the GFCI will trip, hopefully preventing electrocution.
  • You cut through the cable of a hedge cutter, current flows to the ground via the blade. This is rare nowadays since most power tools and garden tools are double insulated with plastic casings and no ground (earth) conductor in the flex.
  • The socket outlet on an extension lead gets wet when left on grass or in a puddle.
  • A fault occurs inside an appliance causing wires or other live metal parts to touch the internal grounded body of the appliance.
  • Indoors, the connector at the end of the flex of a kettle is left in the water on a sink while plugged in.

What Type of GFCI Should I Choose?

GFCIs are sometimes fitted as an integrated moulded plug on an extension lead. You can also buy an adapter like this one from Amazon which you plug into a socket outlet. You then plug the extension lead or appliance into the adapter.

Another alternative is to replace the socket outlet you use for powering outdoor equipment with a GFCI outlet version that has integrated protection. Yet another option is a GFCI "plug". This can be wired to the power cord of an appliance as a replacement for the standard plug.

If you use a GFCI adaptor, remember you are protected "downstream" of the adaptor. So ideally it should be plugged into a socket and if an extension lead is used, this is then plugged into the adaptor.

If you plug the adaptor into a socket at the end of the extension lead, the adaptor won't give any protection if for instance you cut through the insulation of the extension lead and expose a live conductor.

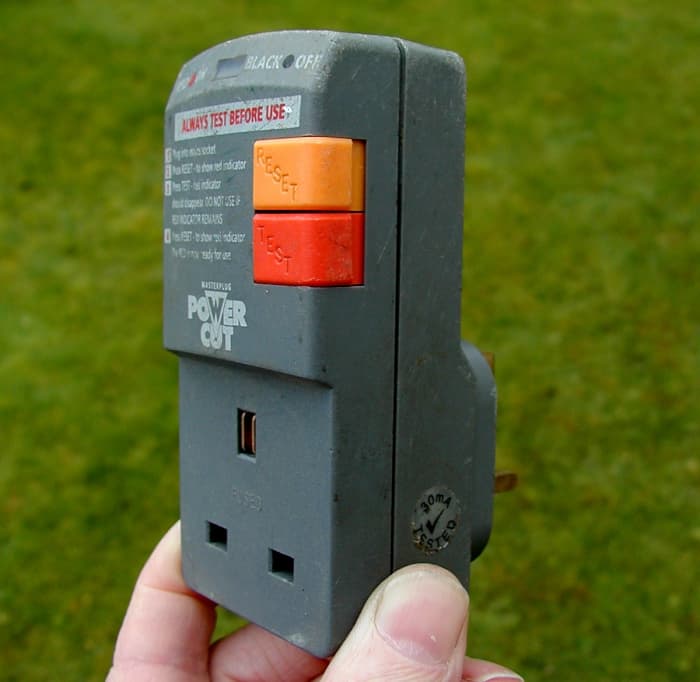

GFCI adapter from Amazon

GFCI adapter from Amazon

Don't I Already Have an GFCI Fitted at My Electrical Panel?!

Most modern electrical installations have GFCIs installed as standard at the electrical panel or "fusebox" and this protects socket outlets. However, older homes may not have one of these devices. If you don't, it's worth considering an upgrade by a qualified electrician.

Even if you do have a GFCI at the panel, it's no harm using a GFCI adapter on your extension lead as added insurance when working outdoors, just in case the primary device fails. Both the GFCI at the fusebox and GFCI adapters have test buttons. These should be pressed regularly to ensure they are working properly (just like the way you press the button on your smoke alarm to test it)

If you do work in other people's homes and use power tools or other electrical equipment in damp conditions, you don't know whether their electrical installation is safe and up to scratch, so it's a good idea to have one of these fitted to your extension cable.

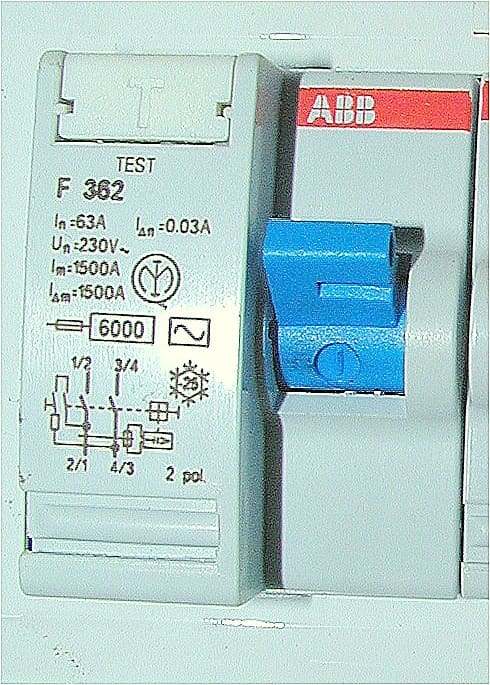

A DIN rail mounted modular RCD/GFCI like this one is fitted as standard at the electrical panel

A DIN rail mounted modular RCD/GFCI like this one is fitted as standard at the electrical panel

FAQs About Electricity

Is it current or volts that kill?

Voltage is like pressure and forces current around a circuit. Current is what can stop your heart but voltage needs to be sufficient to produce the current to do this.

The actual current that flows depends on several factors such as the nature of the skin (smooth or calloused), whether the skin is wet or dry, how sharp electrical contacts are, place on the body where contact occurs, etc.

What is the primary difference Between a GFCI and an MCB?

A GFCI trips (switch opens) when a live-to-earth or live-to-neutral fault occurs.

An MCB trips when an excessive current flows in a cable. An MCB protects the cable from overheating and potentially causing a fire, a GFCI reduces the risk of severe or fatal shock.
